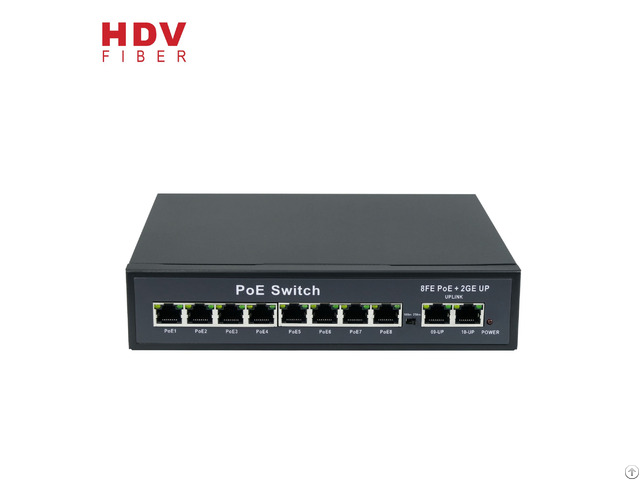

Odm Oem 2 1000m Rj45 And 10 100m Ethernet Switch 8 Port Poe Ieee 802 3af - China

Network Standard • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at Port • 8 * 10 / 100Mbps RJ45 port • 2 * 10 / 100/1000Mbps RJ45 uplink port PoE Power Supply • 8 * 10 / 100Mbps RJ45 port supports PoE + power supply (Data / PoE) • Maximum single port power supply is 30W • The power supply of the whole machine is 96W, 120W, 150W (optional) PoE Connection • 1-8 ports support IEEE802.3af / at • Support RJ45 network port 1/2 +, 3 / 6- line pair • Transmission distance 250M (manually turned on) Indicator Light • Data port has a LINK / ACT.

100Mbps indicator • The uplink port has two LINK / ACT.

1000Mbps indicators • PoE status indicator • Machine power indicator, Extend indicator Performance • Store and forward • Support 2K MAC address table depth • 5.6Gbps backplane bandwidth Forwarding Rate • 10Mbps: 14880pps / port • 100BASE-T: 148800pps / port • 1000BASE-T: 1488095pps/port Port Function • Fast and forward, MAC automatic learning and aging, power supply priority mechanism • IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control • VLAN isolation mode (manually enabled) Use Environment • Working temperature: -10 ℃ --55 ℃ Power Supply • Built-in power supply • 100VAC-240VAC, 50HZ / 60HZ • 96W, 120W, 150W (optional) Weight and size • 0.742KG • 202mm * 140mm * 45mm (L * W * H)
