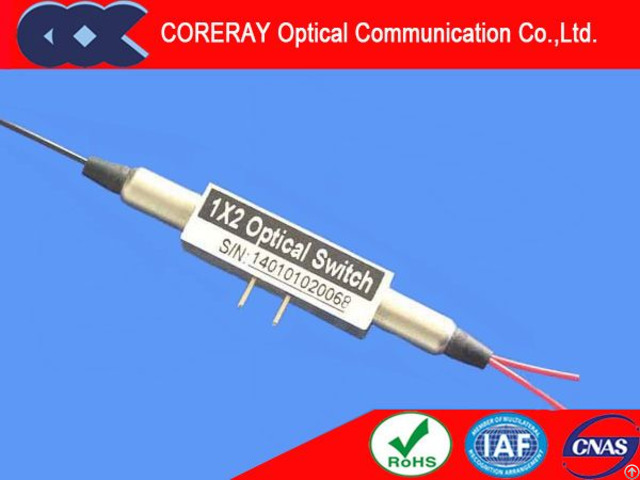

Mini 1x2 Fiber Optical Switch For Military Communication - China

Mini 1X1 1X2 2×2Bypass Optical Switch Features

 Low Insertion Loss

 Wide Wavelength Range

 Low Crosstalk

 High Stability, High Reliability

 Epoxy-free on Optical Path

 Latching and Non-latching Application

 Metropolitan Area Network

 R&D in Laboratory

 System Monitoring

 Configurable OADM Performance

Parameters MOSW-1X1 1X2 2×2B Wavelength Range nm 650~1310 1260~1670 Testing Wavelength nm 650/780/850/980/1064/1310 1310/1490/1550/1625/1650 Insertion Loss 1X1 dB Typ: 0.6, Max: 1.0 Typ: 0.5, Max: 0.8 1X2 Typ: 0.6, Max: 1.0 Typ: 0.6, Max: 1.0 2X2B Typ: 0.8, Max: 1.2 Typ: 0.8, Max: 1.0 Return Loss dB ≥30 ≥50 Crosstalk dB ≥35 ≥50 PDL dB ≤0.05 WDL dB ≤0.25 TDL dB ≤0.25 Repeatability dB ≤±0.02 Power supply v 3.3 or 5.0 Lifetime Cycle ≥107 Switch Time ms ≤8 Transmission Power mW ≤500 Operation Temperature ℃ -30~+85 Storage Temperature ℃ -40~+85 Weight g 16 Dimension mm (L)26×(W)12.5×(H)8.2(± 0.2) Functional Diagram Pins

Optical Path Electric Drive Sensor Status 1×1 / 1×2 / 2×2B 1 5 6 10 3－4, 7－8 2－3, 8－9 Latching A N/A N/A GND +5V OPEN CLOSE B +5V GND N/A N/A CLOSE OPEN Non- Latching A N/A N/A N/A N/A OPEN CLOSE B +5V N/A N/A GND CLOSE OPEN State 1X1 1X2 2X2 Bypass A Light Close P1-P2 P1-P3 B P1-P2 P1-P3 P1-P4/P2-P3 Electrical parameters Voltage current Resistor 5V Latching 4.5~5.5 36~44mA 125Ω

5V Non-Latching 4.5~5.5 26~32mA 175Ω

3V Latching 2.7~3.3 54~66mA 50Ω

3V Non-Latching 2.7~3.3 39~47mA 70Ω Dimensions Ordering Information：MOSW－A－ B－C－D－E－F－G A B C D E F G Mode Wavelength Voltage Control Model Fiber Diameter Fiber Length Connector

1x1: 1X1

1x2: 1X2

2x2B: 2X2Bypass SM: 9/125um M5: 50/125um M6: 62.5/125um 85: 850nm 13: 1310nm 14: 1490nm 15: 1550nm 162: 1625nm 165: 1650nm 13/15: 1310/1550nm 3: 3V 5: 5V L: Latching N: Non-Latching 25: 250um 90: 900um 20: 2.0mm 30: 3.0mm 05: 0.5m 10: 1.0m 15: 1.5m OO: None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC
