Mems 1x64 Optical Switches Module - China
price: 8000.00 Dollar US$

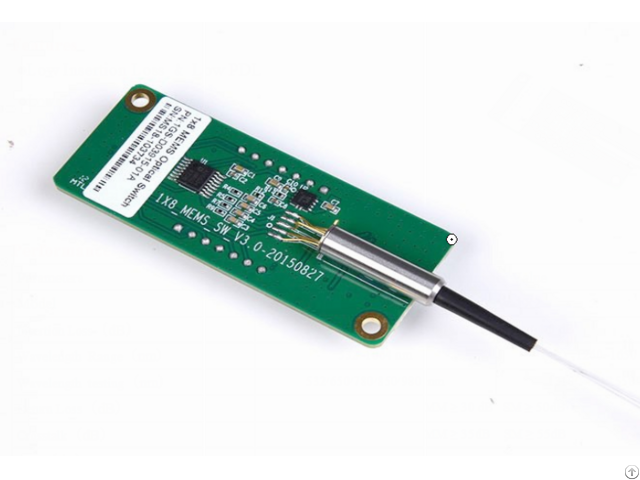

Description 1xN MEMS switch module This Driver Board provides the necessary drive circuitry for the 2D MEMS Chip, allowing the user to control four analog voltages between 0 and 60V that actuate the MEMS mirror.
The required power supply for the driver PCB is 5V/12V and its internal HV boost circuit provides the 60V power supply to the HV DAC (AD 5504).
The 26-pin connector on its back side is designed for connecting to the Raspberry Pi but it will work with any SPI hardware.
Features ●Low Insertion Loss & Low PDL ●Low Power Consumption
●High switching speed ●Insensitive to Shock and Vibration ●High Reliability and Stability Applications ●Fiber communication System ●Optical component testing ●Fiber sensing System ●Channel Monitor ●Matrix Optical Switch
Technical Parameter Parameter Unit Parameter values Wavelength Range nm 1290~1330/ 1525~1568/ 1600~1650 Insertion Loss(1) dB 1×8 ≤0.9 @S ≤1.1 @D 1x12 ≤1.1 @S ≤1.3 @D 1x16 ≤1.1 @S ≤1.3 @D 1×24 ≤1.3 @S ≤1.5 @D 1×32 ≤1.5 @S ≤1.7 @D 1x48 ≤1.5 @S ≤1.7 @D 1×64 ≤1.5 @S ≤1.7 @D Return Loss dB ≥45 Crosstalk dB ≥40 PDL dB <0.2 WDL dB ≤0.3 @S ≤1.0 @D TDL dB ≤0.4 @N≤16 ≤0.6 @N＞16 Repeatability dB <0.1 Operating Voltage V 5.0±0.25 Lifetime Cycles > 109 Switching Time ms <30 Maximum luminous power mW <500 Operating Temperature °C -5~ +65 Storage temperature °C -40 ~ +85 Relative humidity % 5 ~ 95 Remarks：(1)Test within the operating temperature range and without connector, s stands for single operating band, and D stands for dual operating band.
Company Contact:
- Phone: +8607713121055
- Address: Room 3-3, No. 17 MingYang Fifth Road, MingYang Industrial Area, Wuxu Town,, Nanning , China
- Email:
- Website: https://www.xhphotoelectric.com
Published date: July 28, 2022
- Business Description: Optical Switch, Optical Protection, optical-power signal acquisition equipment, Optical Attenuator, stable light sources, wavelength division multiplexers, circulators, optical fiber collimators, optical fiber jumpers, optical cable monitoring systems, distributed optical fiber temperature measurement systems (DTS), optical fiber grating sensors and other optoelectronic products.
