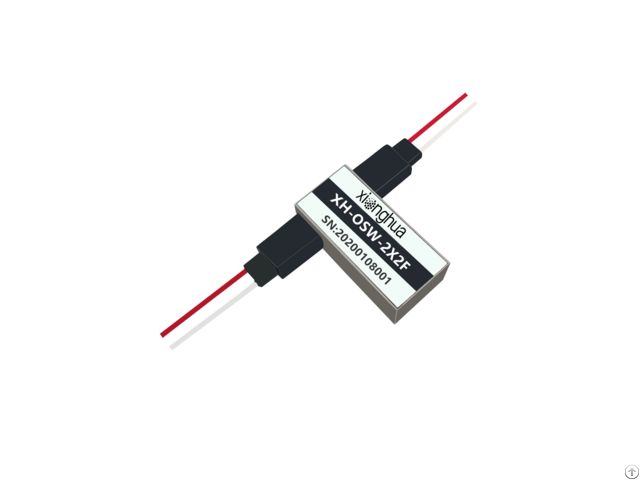

Mechanical Optical Switch Xh Osw 2x2f - China
price: 50.00 Dollar US$
Mechanical Optical Switch(XH-OSW-2X2F) Features: ●Low insertion loss, wide wavelength range ●Low channel crosstalk, high stability, high reliability ●Simple control, small size, easy to embed in the circuit board ●Locking and non-locking control types can be selected Mechanical Optical Switch(XH-OSW-2X2F) Parameter : parameter Parameter value
model XH-OSW-2X2F
Insertion loss(dB) Typ：0.5 Max：1.0
Wavelength range(nm) 800~1310 & 1260~1650
Working wavelength(nm) 850/980/1310 & 1310/1550/1625
Return loss(dB) MM≥30 & SM ≥50
Channel crosstalk(dB) MM≥ 35 & SM ≥55
PDL(dB) ≤0.05
WDL(dB) ≤0.25
TDL(dB) ≤0.25
Repeatability(dB) ≤±0.02
Switching times(Times) ≥107
Switching time(ms) ≤8
Transmission power(mW) ≤500
Operating Voltage(V) 3 or 5
Operating temperature(℃) -20~+70
Storage temperature(℃) -40~+85
Package size(mm) (L)27.0×(W)12.5×(H)8.4 0.2
Company Contact:
- Phone: +8607713121055
- Address: Room 3-3, No. 17 MingYang Fifth Road, MingYang Industrial Area, Wuxu Town,, Nanning , China
- Email:
- Website: https://www.xhphotoelectric.com
Published date: March 28, 2022
- Business Description: Optical Switch, Optical Protection, optical-power signal acquisition equipment, Optical Attenuator, stable light sources, wavelength division multiplexers, circulators, optical fiber collimators, optical fiber jumpers, optical cable monitoring systems, distributed optical fiber temperature measurement systems (DTS), optical fiber grating sensors and other optoelectronic products.
