Gw 05 0153 Covers Wi Fi 6 Frequencies 5 9 71ghz - China
price: 200.00 Dollar US$
Description:

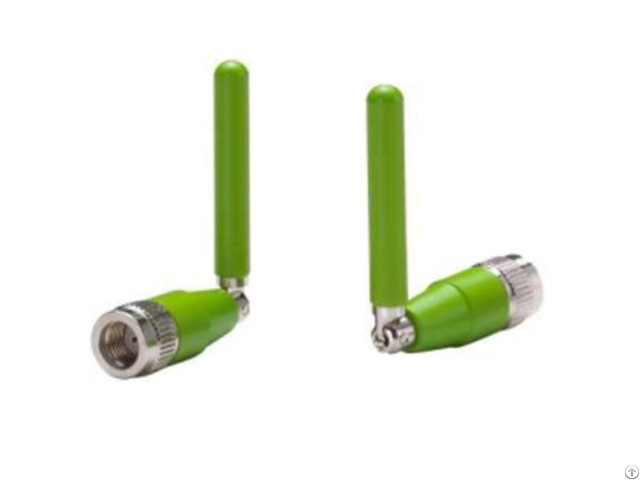

Dual-Band Wi-Fi 2.4~2.5GHz/5.15~5.85GHz Terminal Mount Monopole Antenna
Also Covering Wi-Fi 6 Frequencies
Features:
High Efficiency 一 with and without ground plane
Wi-Fi 2.4/5.8/7.1GHZ
Covers Wi-Fi 6 Frequencies: 5.9-71GHz
Extremely Compact - 62.3mm ± 1.5mm
Aesthetic look and feel
Unique can rotate 360 degrees and articulate through 180 degrees
Max Peak Gain compliant with most Wi-Fi modules
Connector: RP-SMA(M)
Dimensions: 62.3*Ø10mm
RoHS & Reach Compliant
General Data Product Name Terminal Mount Monopole Antenna
Part No.
GW.
05.0153
Frequency Wi-Fi 2.4/5.8/7.1G HZ Antenna length 62.3mm
Antenna Diameter 10mm
Casing POM
Connector RP-SMA(M)
Weight 6g
Recommended Torque for Mounting 0.9N-m
Operation Temperature -40°C~ + 85°C
Storage Temperature -40°C~ + 85°C
Humidity Non-condensing 65°C 95% RH
Company Contact:
- Posted By: Wallys Communications (Suzhou) Co., LTD
- Phone: 17366272175
- Address: 116 ChengYang Road, XiangCheng District, SuZhou City, JiangSu Province, China
- Email:
- Website: https://www.wallystech.com/
Published date: November 21, 2021
- Business Description: Wallys Communications (Suzhou ) Co., LTD With over 15 years of experience in wireless industry and penetrating market olfaction, Wallys has designed and manufactured many high quality and cost-effective routerboards and wireless network cards.
In the complex market, Wallys products stand out and are affirmed by partners.
From 802.11 a - ax, Wallys always keeps up with the most cutting-edge wireless technology, aimed to help customers take the preemptive opportunities to occupy the market and lead a win-win cooperation.
