Glsun Fiber Optic Circulator - China
price: 100.00 Dollar US$

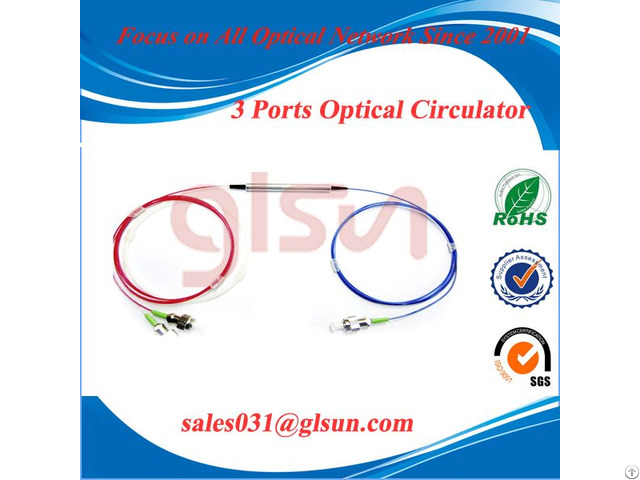

GLSUN three ports Polarization Insensitive Fiber Optic Circulator Description
Polarization insensitive optical circulator utilizes proprietary designs and metal bonding micro optics packaging.
It provides low insertion loss, broad band high isolation, low PDL, excellent temperature stability and optical path epoxy free.
It can be used for wavelength add/drop, dispersion compensation and EDFA application.
Optical Circulator is widely used in advanced communication systems and fiber-optical sensor systems.
GLSUN 3 port Polarization Insensitive Fiber Optic Circulator - Features
Low Insertion Loss
High Stability, High Reliability
Epoxy-free on Optical Path
Compact Size
Rohs6/6 Compliant GLSUN 3 ports Polarization Insensitive Fiber Optic Circulator - Applications
R&D in Laboratory
Dispersion Compensation
Bi-directional Transmission System
Fiber Sensor
Add/Drop Multiplexing, Instrument, testing and measurement GLSUN 3 ports Polarization Insensitive Fiber Optic Circulator - Specifications:
Parameters Unit Min Typ Max
Operating Wavelength Range nm 1260~1340
Insertion Loss dB 0.7 1.0
Polarization Dependent Loss (PDL) dB 0.10 0.18
Directivity (1 to 3 or 3 to 1) dB 50 Polarization Mode Dispersion (PMD) pS 0.1
Isolation (2->1&3->2) dB 40 Return Loss dB 50 Optical Power Handling mW 500
Operating Temperature ℃ -5 ~ 65
Storage Temperature ℃ -40 ~ 100
Fiber Type ZBL or other equal fiber
Fiber Length mm L +/-1mm
Connector LC Receptacle or Fiberstub
Color Code Port 1: black; Port 2 & 3: clear
Note: All the parameters are excluding connectors;
Company Contact:
- Posted By: GLSUN SCIENCE AND TECH CO.,LTD.
- Phone: 18607731315
- Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , Guangxi , China
- Email:
- Website: https://www.glsun.com
Published date: October 31, 2018
- Business Description: Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
