  • Glsun D2x2b Fiber Optical Bypass Switch - China

    price: 100.00 Dollar US$

    Product Description

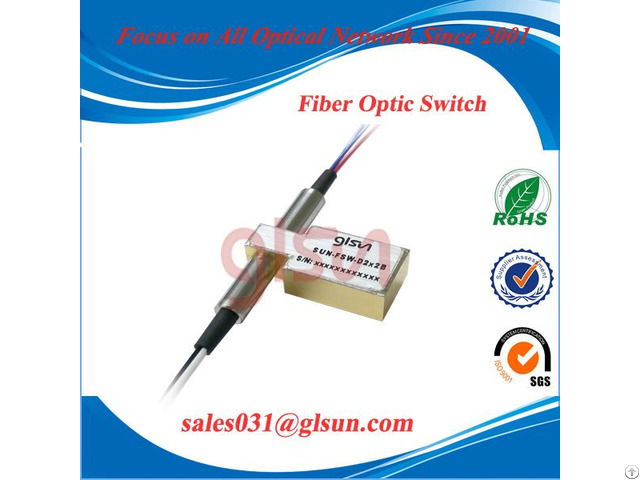

    GLSUN D2×2B Fiber Optical Switch - Introduction

    SUN-FSW-D2×2B Fiber Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)27.0×(W)12.6×(H)8.2m m.

    It is an ideal component for OADM, OXC, system monitoring and protection.

    With compact package, it can be easy to integrate into a high density optical communication system.

    Features

    ·Low Insertion Loss

    ·Wide Wavelength Range

    ·Low Crosstalk

    ·High Stability, High Reliability

    ·Epoxy-free on Optical Path

    ·Latching and Non-latching Applications

    ·R&D in Laboratory

    ·System Monitoring

    ·OADM

    ·MAN (Metropolitan Area Network) Specifications

    Parameters Unit SUN-FSW

    Wavelength Range nm 850±40 / 1300±40 1260 ~ 1650

    Test Wavelength nm 850 / 1300 1310 / 1550

    Insertion Loss 1, 2 dB 1x1 ≤ 0.5

    1x2 / 2x2B ≤ 0.8

    D1x2 / D2x2B ≤ 1.0

    Return Loss 1, 2 dB MM ≥ 30 SM ≥ 50

    Crosstalk 1, 2 dB MM ≥ 35 SM ≥ 55

    PDL dB -- ≤ 0.05

    WDL dB ≤ 0.30

    Repeatability dB ≤ ±0.02

    Operating Voltage V 3.0 or 5.0

    Durability Cycles ≥ 10 Million

    Switching Time ms ≤ 8

    Optical Power mW ≤ 500

    Operating Temperature ℃ -20 ~ +70

    Storage Temperature ℃ -40 ~ +85

    Relative Humidity % 5 ~ 95

    Dimension mm (L)27.0×(W)12.6×(H)8.2 ±0.2

    Note: 1 Test at room temperature.

    2 Excluding connectors.


    Company Contact:


    • Phone: 18607731315

    • Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , Guangxi , China

    • Email: Email


    Published date: April 23, 2018

    • Business Description: Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
