Glsun Cascade Optical Switch - China
price: 500.00 Dollar US$
Product Description

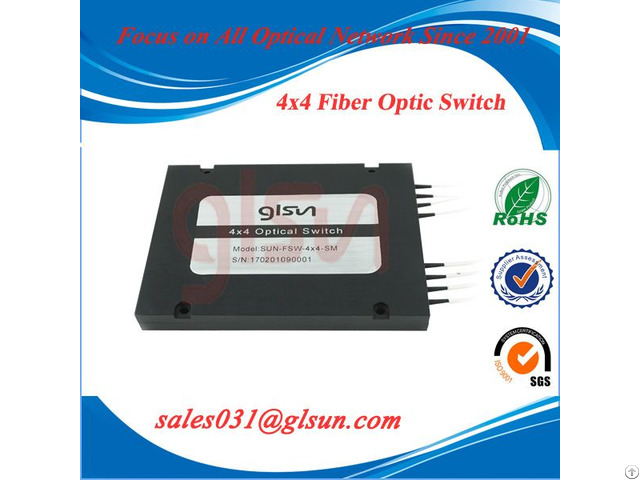

GLSUN 4×4 Multi-Channel Fiber Optical Switch - Introduction
SUN-FSW-4×4 Cascade Optical Switch is an ideal component for OADM, OXC, system monitoring and protection.
With compact package, it can be easy to integrate into a high density optical communication system.
Features
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path Applications
·R&D in Laboratory
·System Monitoring
·OADM
·OXC 4×4 Cascade Optical Switch - Specifications
Parameters
Unit
SUN-FSW-4×4
Wavelength Range
nm
850±40 / 1300±40
1260 ~ 1650
Test Wavelength
nm
850 / 1300
1310 / 1550
Insertion Loss
dB
Typ: 2.3 Max: 2.6
Return Loss
dB
MM ≥ 30 SM ≥ 50
Crosstalk
dB
MM ≥ 35 SM ≥ 55
PDL
dB
≤ 0.15
WDL
dB
≤ 0.35
Repeatability
dB
≤ ±0.05
Power Supply
V
5.0 ± 5%
Durability
Cycles
≥ 10 Million
Switching Time
ms
≤8
Optical Power
mW
≤500
Operating Temperature
℃
-5 ~ +70
Storage Temperature
℃
-40 ~ +85
Relative Humidity
%
5 ~ 95
Dimension
mm
(L)110×(W)95×(H)14 ±0.2
Company Contact:
- Posted By: GLSUN SCIENCE AND TECH CO.,LTD.
- Phone: 18607731315
- Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , Guangxi , China
- Email:
- Website: https://www.glsun.com
Published date: April 25, 2018
- Business Description: Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
