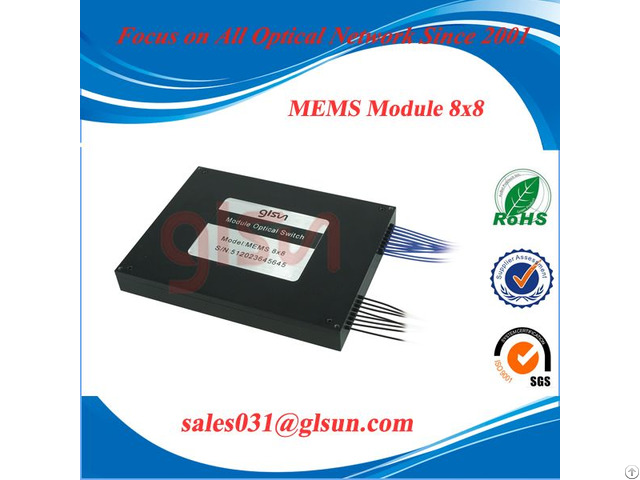

Glsun 8x8 Mems Fiber Optical Switch - China
price: 500.00 Dollar US$
8x8 MEMS Fiber Optical Switch- Features
·Base on MEMS technology
·Small package
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Non-latching
8x8 MEMS Fiber Optical Switch- Applications
·DWDM networks
·Channel Monitor
·R&D in Laboratory
·Configurable OADM Specifications
Parameters Unit SUN-FSW-MEMS-8x8
Operation Wavelength nm 1550±40
Test Wavelength nm 1550
Insertion Loss 1, 2 dB 1.5TYP 2.0(MAX)
Return Loss dB ≥45
Crosstalk dB ≥55
Repeatability dB ≤±0.05
Power Supply V 5
Durability Cycles ≥109
Switch Time ms ≤20
Switch Type Non-Lacth Type
Transmission Power mW ≤500
Operating Temperature ℃ -5~+70
Storage Temperature ℃ -40~+85
Dimension mm 127(L) x 95(W) x15 (H) ±0.2
Note 1 Within operating temperature and SOP.
2 Excluding connectors.
Company Contact:
- Posted By: GLSUN SCIENCE AND TECH CO.,LTD.
- Phone: 18607731315
- Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , Guangxi , China
- Email:
- Website: https://www.glsun.com
Published date: April 23, 2018
- Business Description: Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
