Glsun 3 Port Polarization Insensitive Optical Circulator - China
price: 100.00 Dollar US$

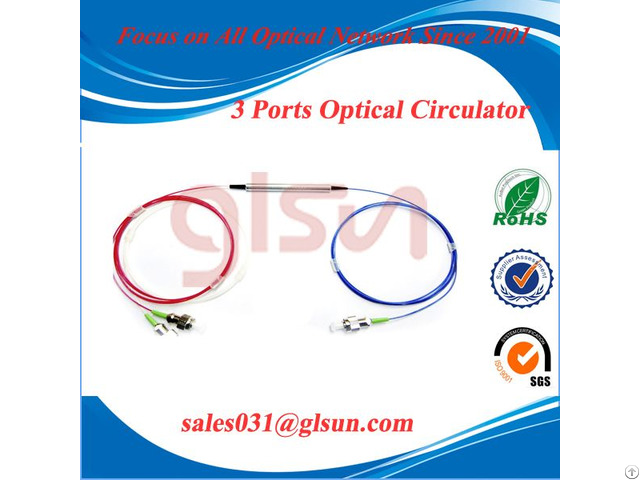

GLSUN 3-port Polarization Insensitive Optical Circulator Description
The polarization insensitive optical circulator is a compact, high-performance lightwave component that routes incoming signals from Port 1 to Port 2, and incoming Port 2 signals to Port 3 - This component provides high isolation, low insertion loss, low polarization dependent loss (PDL), low polarization mode dispersion (PMD), and excellent environmental stability.
This circulator can handle power input up to 500mW.
Optical Circulator is widely used in advanced communication systems and fiber-optical sensor systems.
GLSUN 3-port Polarization Insensitive Optical Circulator - Features
Low Insertion Loss
High Stability, High Reliability
Epoxy-free on Optical Path
Compact Size
Rohs6/6 Compliant GLSUN 3-port Polarization Insensitive Optical Circulator - Applications
R&D in Laboratory
Dispersion Compensation
Bi-directional Transmission System
Fiber Sensor
Add/Drop Multiplexing, Instrument, testing and measurement GLSUN 3-port Polarization Insensitive Optical Circulator - Specifications:
Parameters Unit Min Typ Max
Operating Wavelength Range nm 1260~1340
Insertion Loss dB 0.6 0.8
Polarization Dependent Loss (PDL) dB 0.10 0.15
Directivity (1®3 or 3®1) dB 50 Polarization Mode Dispersion (PMD) pS 0.1
Isolation (2->1&3->2) dB 40 Return Loss dB 50 Optical Power Handling mW 500
Operating Temperature ℃ -5 ~ 65
Storage Temperature ℃ -40 ~ 100
Fiber Type ZBL or equivalent fiber
Color Code Port 1: black; Port 2 & 3: clear
Note: All the parameters are excluding connectors;
Company Contact:
- Posted By: GLSUN SCIENCE AND TECH CO.,LTD.
- Phone: 18607731315
- Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , Guangxi , China
- Email:
- Website: https://www.glsun.com
Published date: October 31, 2018
- Business Description: Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
