  • Glsun 2x2b Optical Bypass Switch - China

    price: 100.00 Dollar US$

    Product Description

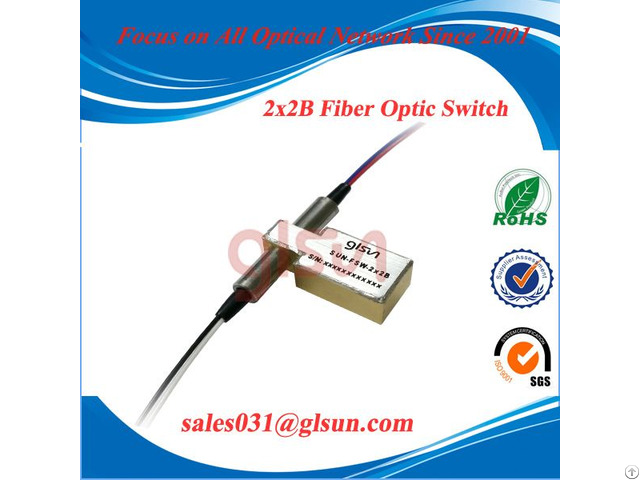

    2x2B Optical Bypass Switch - Introduction

    SUN-FSW-2×2B Fiber Optical Bypass Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)27.0×(W)12.6×(H)8.2m m.

    It is an ideal component for OADM, OXC, system monitoring and protection.

    With compact package, it can be easy to integrate into a high density optical communication system.

    2x2B Optical Bypass Switch - Features Application

    ·Low Insertion Loss

    ·Wide Wavelength Range

    ·Low Crosstalk

    ·High Stability, High Reliability

    ·Epoxy-free on Optical Path

    ·Latching and Non-latching

    ·R&D in Laboratory

    ·System Monitoring

    ·OADM

    ·Sensing Area

    ·MAN (Metropolitan Area Network)

    Detailed Images Specification

    2x2B Optical Bypass Switch - Specifications

    Parameters

    Unit

    SUN-FSW-2×2B

    Wavelength Range

    nm

    850±40 / 1300±40

    1260 ~ 1650

    Test Wavelength

    nm

    850 / 1300

    1310 / 1550

    Insertion Loss 1, 2

    dB

    Typ: 0.8 Max: 1.2

    Typ: 0.6 Max: 0.8

    Return Loss 1, 2

    dB

    MM ≥ 30 SM ≥ 50

    Crosstalk 1

    dB

    MM ≥ 35 SM ≥ 55

    PDL

    dB

    ≤0.05

    WDL

    dB

    ≤0.25

    Repeatability

    dB

    ≤±0.02

    Operating Voltage

    V

    3 or 5

    Durability

    Cycles

    ≥ 10 Million

    Switching Time

    ms

    ≤8

    Optical Power

    mW

    ≤500

    Operating Temperature



    -20 ~ +70

    Storage Temperature



    -40 ~ +85

    Relative Humidity

    %

    5 ~ 95

    Weight

    g

    14

    Dimension

    mm

    (L)27.0×(W)12.6×(H)8 .

    2 ±0.2

    Note:

    1 Within operating temperature and SOP.

    2 Excluding Connectors.


    Company Contact:


    • Phone: 18607731315

    • Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , Guangxi , China

    • Email: Email


    Published date: April 23, 2018

    • Business Description: Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
