Glsun 2x2a Fiber Optical Switch - China
price: 100.00 Dollar US$
Product Description

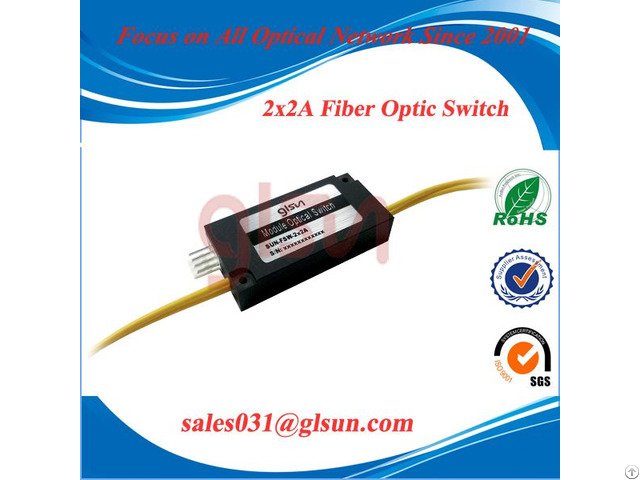

GLSUN 2×2A Fiber Optical Switch - Introduction
SUN-FSW-2×2A Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)55.0×(W)26.0×(H)10.0 mm.
It is an ideal component for OADM, OXC, system monitoring and protection.
With compact package, it can be easy to integrate into a high density optical communication system.
GLSUN 2×2A Fiber Optical Switch - Features Application
·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching
·R&D in Laboratory
·System Monitoring
·OADM
·MAN (Metropolitan Area Network)
Detailed Images Specification
GLSUN 2×2A Fiber Optical Switch - Specification
Parameters
Unit
SUN-FSW-2×2A
Wavelength Range
nm
1260 ~ 1650
Test Wavelength
nm
1310 / 1550
Insertion Loss 1, 2
dB
Typ: 0.8 Max: 1.0
Return Loss 1, 2
dB
≥ 50
Crosstalk 1
dB
≥ 60
PDL
dB
≤0.05
WDL
dB
≤0.25
Repeatability
dB
≤±0.02
Operating Voltage
V
3 or 5
Durability
Cycles
≥ 10 Million
Switching Time
ms
≤8
Optical Power
mW
≤500
Operating Temperature
℃
-20 ~ +70
Storage Temperature
℃
-40 ~ +85
Relative Humidity
%
5 ~ 95
Weight
g
25
Dimension
mm
(L)55.0×(W)26.0×(H)1 0.0 ±0.2
Note:
1 Within operating temperature and SOP.
2 Excluding Connectors.
Company Contact:
- Posted By: GLSUN SCIENCE AND TECH CO.,LTD.
- Phone: 18607731315
- Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , Guangxi , China
- Email:
- Website: https://www.glsun.com
Published date: April 23, 2018
- Business Description: Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
