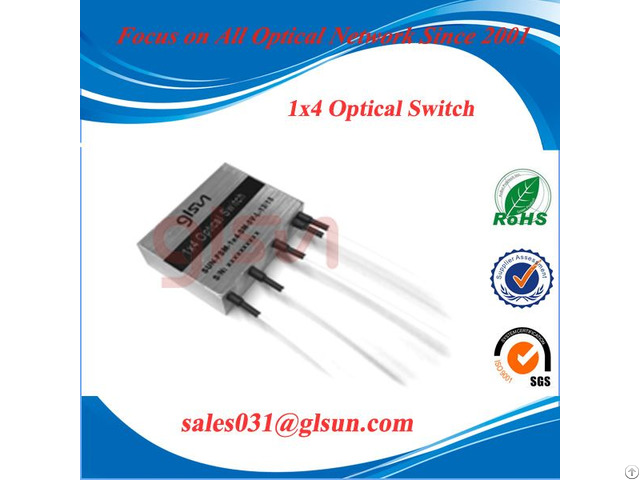

Glsun 1x4 Fiber Optical Switch - China
price: 500.00 Dollar US$
INTRODUCTION: Features ·Low Insertion Loss ·Wide Wavelength Range ·Low Crosstalk ·High Stability, High Reliability ·Epoxy-free on Optical Path ·Latching and Non-latching Applications ·R&D in Laboratory ·System Monitoring ·OADM ·MAN (Metropolitan Area Network) ·Network Security and Monitoring Specifications
Parameters
Unit
SUN-FSW-1×4
Wavelength Range
nm
850±40 / 1300±40
1260 ~ 1650
Test Wavelength
nm
850 / 1300
1310 / 1550
Insertion Loss 1, 2
dB
≤1.0
Return Loss 1, 2
dB
MM ≥ 30 SM ≥ 50
Crosstalk 1
dB
≥ 55
PDL
dB
SM ≤0.1
WDL
dB
≤0.25
Repeatability
dB
≤±0.02
Operating Voltage
V
3.0 or 5.0
Voltage Pluse Width(Latching)
ms
≥ 20
Durability
Cycles
≥ 10 Million
Switching Time
ms
≤8
Optical Power
mW
≤500
Operating Temperature
℃
0 ~ +70
Storage Temperature
℃
-40 ~ +85
Relative Humidity
%
5 ~ 95
Dimension
mm
(L)33.5×(W)25.5×(H)9 .
5 ±0.2 Note: 1 Within operating temperature and SOP.
2 Excluding connectors.
Company Contact:
- Posted By: GLSUN SCIENCE AND TECH CO.,LTD.
- Phone: 18607731315
- Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , Guangxi , China
- Email:
- Website: https://www.glsun.com
Published date: April 24, 2018
- Business Description: Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
