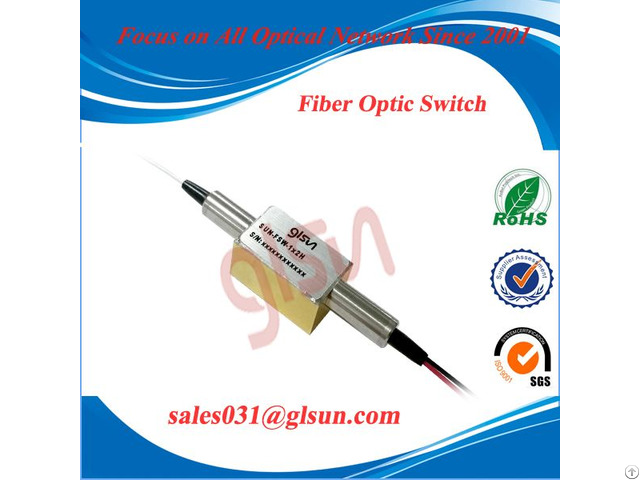

Glsun 1x2h Mechanical Optical Switch - China
price: 100.00 Dollar US$
GLSUN 1×2H Mechanical Optical Switch Fiber Switch Features
·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching GLSUN 1×2H Mechanical Optical Switch Fiber Switch Applications
·R&D in Laboratory
·System Monitoring
·OADM
·MAN (Metropolitan Area Network)
·Network Security and Monitoring GLSUN 1×2H Mechanical Optical Switch Fiber Switch Specifications
Parameters Unit SUN-FSW-1×2H
Wavelength Range nm 1260 ~ 1650
Test Wavelength nm 1310 / 1550
Insertion Loss 1, 2 dB Typ: 0.8 Max: 1.0
Return Loss 1, 2 dB SM ≥ 50
Crosstalk 1 dB SM ≥ 55
PDL dB ≤0.05
WDL dB ≤0.25
Repeatability dB ≤±0.02
Operating Voltage V 3.0 or 5.0
Durability Cycles ≥ 10 Million
Switching Time ms ≤8
Optical Power mW ≤500
Operating Temperature ℃ -20 ~ +70
Storage Temperature ℃ -40 ~ +85
Relative Humidity % 5 ~ 95
Weight g 14
Dimension mm (L )22.5×(W)11.8×(H)10.2 ±0.2
Note: 1 Within operating temperature and SOP.
2 Excluding Connectors.
Company Contact:
- Posted By: GLSUN SCIENCE AND TECH CO.,LTD.
- Phone: 18607731315
- Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , Guangxi , China
- Email:
- Website: https://www.glsun.com
Published date: April 23, 2018
- Business Description: Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
