  • Glsun 1x2 Mechanical Optical Switch - China

    price: 100.00 Dollar US$

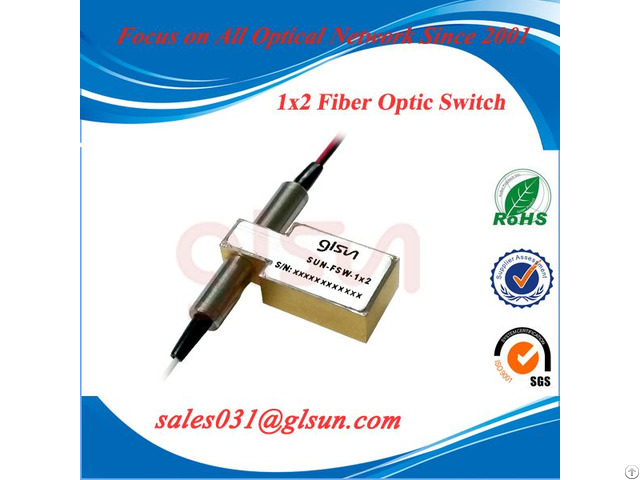

    GLSUN 1×2 Mechanical Optical Switch Fiber Switch Features

    ·Low Insertion Loss

    ·Wide Wavelength Range

    ·Low Crosstalk

    ·High Stability, High Reliability

    ·Epoxy-free on Optical Path

    ·Latching and Non-latching GLSUN 1×2 Mechanical Optical Switch Fiber Switch​ Applications

    ·R&D in Laboratory

    ·System Monitoring

    ·OADM

    ·MAN (Metropolitan Area Network)

    ·Network Security and Monitoring GLSUN 1×2 Mechanical Optical Switch Fiber Switch​ Specifications

    Parameters Unit SUN-FSW-1×2

    Wavelength Range nm 850±40 / 1300±40 1260 ~ 1650

    Test Wavelength nm 850 / 1300 1310 / 1550

    Insertion Loss 1, 2 dB Typ: 0.8 Max: 1.2 Typ: 0.6 Max: 0.8

    Return Loss 1, 2 dB MM ≥ 30 SM ≥ 50

    Crosstalk 1 dB MM ≥ 35 SM ≥ 55

    PDL dB ≤0.05

    WDL dB ≤0.25

    Repeatability dB ≤±0.02

    Operating Voltage V 3.0 or 5.0

    Durability Cycles ≥ 10 Million

    Switching Time ms ≤8

    Optical Power mW ≤500

    Operating

    Temperature

    ℃ -20 ~ +70

    Storage

    Temperature

    ℃ -40 ~ +85

    Relative Humidity % 5 ~ 95

    Weight g 14

    Dimension mm (L)27.0×(W)12.6×(H)8.2 ±0.2

    Note: 1 Within operating temperature and SOP.

    2 Excluding connectors.


    Company Contact:


    • Phone: 18607731315

    • Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , Guangxi , China

    • Email: Email


    Published date: April 23, 2018

    • Business Description: Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
