Glsun 1x1 Mechanical Optical Switch - China
price: 100.00 Dollar US$

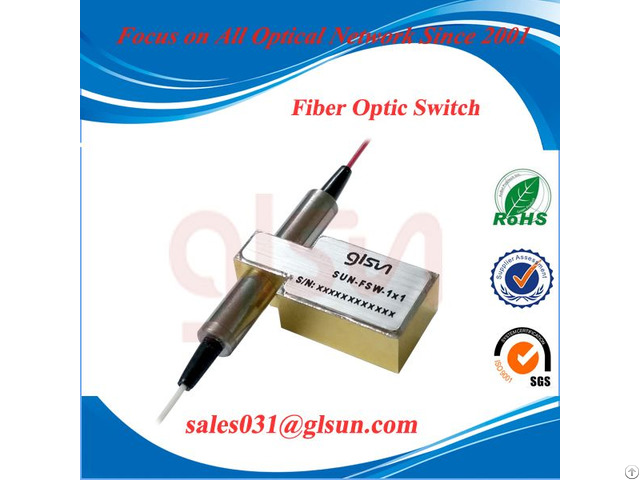

GLSUN 1x1 Mechanical Optical Switch
SUN-FSW-1×1 Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)27.0×(W)12.6×(H)8.2m m.
It is an ideal component for OADM, OXC, system monitoring and protection.
With compact package, it can be easy to integrate into a high density optical communication system.
GLSUN 1x1 Mechanical Optical Switch - Features
·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching GLSUN 1x1 Mechanical Optical Switch - Applications
R&D in Laboratory
System Monitoring
OADM
MAN(Metropolitan Area Network)
Network Security and Monitoring GLSUN 1×1 Optical Switch - Specifications
Parameters Unit SUN-FSW-1×1
Wavelength Range nm 850±40 / 1300±40 1260 ~ 1650
Test Wavelength nm 850 / 1300 1310 / 1550
Insertion Loss 1, 2 dB Typ: 0.5 Max: 0.8 Typ: 0.4 Max: 0.6
Return Loss 1, 2 dB MM ≥ 30 SM ≥ 50
Crosstalk 1 dB MM ≥ 65 SM ≥ 70
PDL dB ≤0.05
WDL dB ≤0.25
Repeatability dB ≤±0.02
Operating Voltage V 3.0 or 5.0
Durability Cycles ≥ 10 Million
Switching Time ms ≤8
Optical Power mW ≤500
Operating Temperature ℃ -20 ~ +70
Storage Temperature ℃ -40 ~ +85
Relative Humidity % 5 ~ 95
Weight g 14
Dimension mm (L)27.0×(W)12.6×(H)8.2 ±0.2
Note: 1 Within operating temperature and SOP.
2 Excluding Connectors.
Company Contact:
- Posted By: GLSUN SCIENCE AND TECH CO.,LTD.
- Phone: 18607731315
- Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , Guangxi , China
- Email:
- Website: https://www.glsun.com
Published date: April 23, 2018
- Business Description: Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
