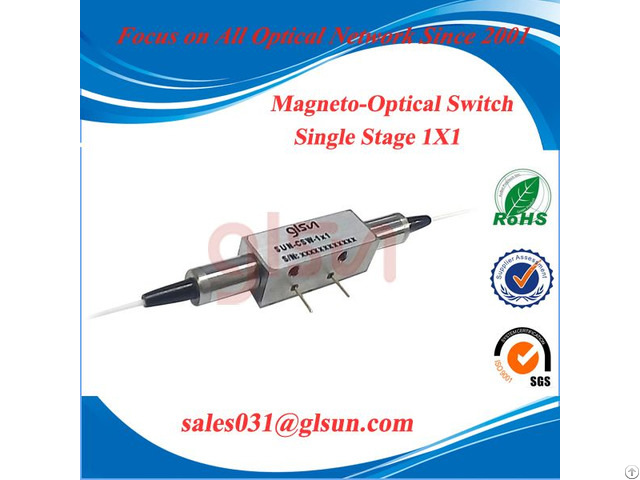

Glsun 1x1 Magneto Optic Switch - China
price: 500.00 Dollar US$
Product Description
In telecommunication, an optical switch is a switch that enables signals in optical fibers or integrated optical circuits (IOCs) to be selectively switched from one circuit to another.
A fiber magneto-optical switch is presented by using a fiber coupler and magnetic fluids.
By controlling the coupling ratio of the coupler related with magnetic fluid refractive index, the optical switch function can be carried out.
1x1 Magneto-Optic Switch Features High switching speed
Better durability
High reliability
Low voltage drive
Fail-safe latching Applications Optical channel blocking
Configurable Add/Drop
System monitoring, Test&measurement
Fiber-optics sensing system The high-speed 1x1 magneto-optic switch can be used in high-speed all-optical communication network.
The optical route design covers optical route design of polarization in optical switch, the performance analysis and material selection of magneto-optic crystal and magnetic path design in Faraday rotator.
Specifications
Parameters Unit 1x1
Wavelength Range nm 1520~1580
Test Wavelength nm 1550
Insertion Loss dB 0.8
Return Loss dB ≥ 50
Crosstalk dB ≥ 20
PDL dB ≤ 0.2
Repeatability dB ≤ ±0.01
Drive Voltage V 2.5±10%
Drive Current mA 110~190
Durability Cycles ≥ 30 Bllions
Switching Time us ≤100(typ：50)
Pulse Duration us 200~500
Switching Type n/a Latching
Optical Power mW ≤ 500
Operating Temperature ℃ -5~ +70
Storage Temperature ℃ -40 ~ +85
Relative Humidity % 5 ~ 95
Dimension mm (L )18x(W)7.3x(H)6±0.2
Company Contact:
- Posted By: GLSUN SCIENCE AND TECH CO.,LTD.
- Phone: 18607731315
- Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , Guangxi , China
- Email:
- Website: https://www.glsun.com
Published date: April 25, 2018
- Business Description: Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
