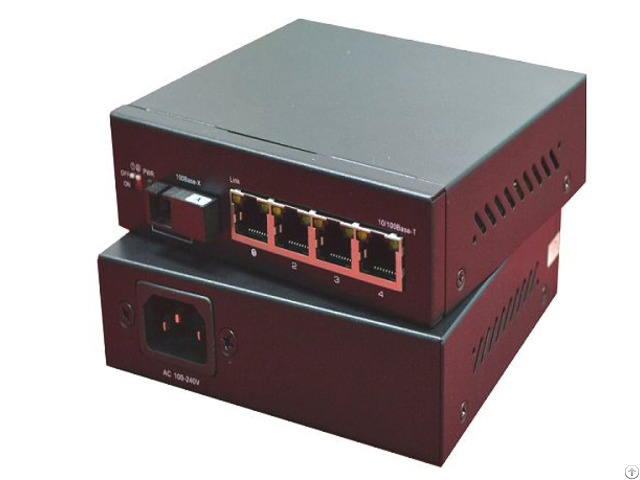

BD-100M-1F4T Ethernet Switch is designed by Wintop.

For Network high-definition monitor, network engineering etc.

It provides high speed packet forwarding capacity and sufficient backboard bandwidth to ensure clear image and smooth transmission.

Embedded static and surge protection circuit to improve product stability.

Supports one-key VLAN configuration mode to achieve ports isolating and network storm inhibiting for protecting the information safety, preventing virus and online attack.

It supports video channel mode, one-to-one correspondence channel mode can be configured under two same products’downlink port.

Support long distance transmission mode, compulsory electric down link port data rate is 10Base-T, this increasing the transmission distance of down linkport.

Under this state, the transmission distance of down link port is 0-350m, which can completely meet the demands of network video monitoring system and network engineering.

The DIP type desktop Ethernet switch is oriented to the terminal access layer, according to the port type and configuration quantity, we have model BD-100M-1F4T which has One Fast optical interface, Four Fast electrical interfaces ; every electric interface supports 10/100Mbps self-adaptation and MDI/MDIX.

Product Features One-key VLAN mode configuration, realize port isolation One-key video channel mode configuration, downlink port one-to-one channel correspondence transmission mode One-key long distance mode configuration, increase the transmission distance of the lower electrical interface Input voltage range 100~240V AC

One-key VLAN mode configuration, realize port isolation One-key video channel mode configuration, downlink port one-to-one channel correspondence transmission mode One-key long distance mode configuration, increase the transmission distance of the lower electrical interface Input voltage range 100~240V AC Product Properties Technology Support Standard: IEEE 802.3 10BaseT IEEE 802.3u 100BaseT Switch Properties Backboard bandwidth: 1Gbps MAC address table: 1K Message cache size: 512Kbits Interface Optical interface: 100Mbps (Interface type: SC, ST, FC and SFP Slot are available) Network interface: 10/100Mbps self-adaptation, Full/Half duplex mode, support MDI/MDI-X.

normal transmission distance 0-100m; long distance mode 0-350m.

DIP switch: , ‚ LED indicator: PWR, Link, 10/100Base-T Optical Fiber 1000BaseFX Multimode Single-Mode Wavelength 850 nm 1310 /1550nm Maximum transmit power -10 dBm 0 dBm Minimum transmit power -20 dBm -5 dBm Receiving sensitivity -32 dBm -34 dBm Link budget 12 dB 29 dB Transmisson distance 5kma 4 kmb 40 kmc Saturation -6 dBm -3 dBm a.

50/125um, 800 MHz*km optical fiber cable b.

62.5/125 um, 500MHz*km optical fiber cable c.

9/125um Single-Mode optical fiber cable Power Supply Input voltage: 100~240V AC Input current: max 30mA Physical Properties Housing: metal, IP30 protection Dimension: 125x109x 32 mm Weight: 430g Installation mode: desktop installation, wall-mounted installation Environmental Constraint Working temperature: -20 ~ 60°C(-4 ~ 140°F) Storage temperature: -40 ~ 85°C(-40 ~ 185°F) Environment relative humidity: 5 ~ 95% (non-condensing) Standard and Certification Electromagnetic interference (EMI): FCC Part 15/CISPR22(EN55022): Class A Electromagnetic sensibility (EMS): IEC61000-4-2 (ESD) Class 3, IEC 61000-4-3 (RS) Class 3, IEC 61000-4-4 (EFT) Class 2, IEC 61000-4-5 (Surge) Class 3, IEC 61000-4-6 (CS) Class 3 Vibration resistance: IEC60068-2-6 Impact resistance: IEC60068-2-27 Free falling: IEC60068-2-32
