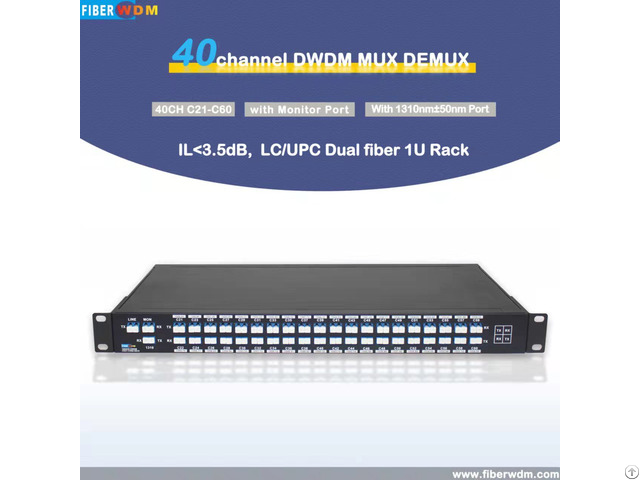

Dual Fiber 40ch C21 C60 Dwdm Mux Demux With 1310nm And Monitor Port - China

IL<3.5dB, 100GHZ DWDM AAWG Technology

Multiplexing of 40 Channels with 1310nm and Monitor a Dark Fiber Network

Fully Compatible with All ITU-T 1G/10G/25G/40G/100G DWDM Optics

Passive devices, No Power No Cooling Required

Support Metro, Regional and Long Haul DWDM Networks The 40ch DWDM MUX DEMUX is designed by FIBERWDM, wavelength fromC21 toC60(1560.61nm~1529.55nn m), in accordance with the ITU-T G.

694.1 100GHZ grid, it maximizes the capacity of the C-band range.

The 40ch DWDM with 1310nm port is totally passive DWDM device, and support low insertion loss( wavelength ports＜3.5dB; 1310nm port＜0.8dB).

And it conjunct with The DWDM amplifiers and DCM device, the 40ch DWDM transfer system can support a long distance transmission.

Company Contact:

• Posted By: Guangzhou Ruid optical co., LTD

• Phone: +8615917492928

• Address: Huadu district, Guangzhou , Guangdong , China

• Email:

• Business Description: FiberWDM, was built by Guangzhou Ruid Ele-tech CO., LTD. is a fiber optical product manufacturer and integrated solution provider.

  Our primary products include, but are not limited to, the 1x9/XFP/SFP/SFP+/25G SFP28/40G QSFP+/100G/200G/400G QSFP optical transceiver, CWDM/ DWDM/ AAWG Devices, optical amplifier EDFA/100G 1310 SOA/Optical Fiber Repeater OEO, Optical Switch, Network Switch, and also include Network Packet Broker, Optical network OTAP for network security system.



  In FiberWDM, our goal is to provide optical fiber products with a high level of design quality and production integrity and have passed stringent testing.

  As a result of our efforts, our company has received the ISO9001 certificate, and our products have obtained CE, RoHS, and SGS certificates.

  Thus, customers can feel confident in purchasing and using our optical products.

  In addition to high-quality optical communication products, our customers also receive a comprehensive line of services, including customized design, installation, training, lifetime maintenance service, and technical support is available 24/7 - Upon request, we can provide product samples, OEM, and ODM services; fast delivery time is also available, generally, in 3-7 days for orders under 500pcs.
