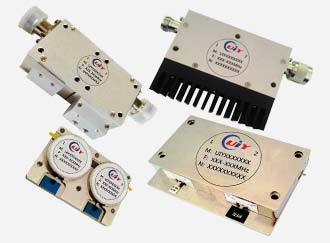

Broadband Circulator Frequency Range 56mhz To 18ghz Up 300w Power Rf - China

Model No.

Freq.

Range

(MHz) BW IL.

(dB) Isolation

(dB) VSWR Forward

Power(W) Reverse

Power(W) Connector

Type Temp.

(°C) Dimension

LxWxH(mm)

UIYBCC6466B

56~86 Full 1.5 16 1.4 60 60 N, SMA +10~+60 64×66×22

UIYBCC6060A

68~88 Full 1.3 18 1.3 100 100 N, SMA -10~+65 60×60×26

UIYBCC6060B

88~108 Full 0.65 20 1.25 100 100 N, SMA -20~+70 60×60×26

UIYBCC6060C

130~180 Full 0.8 18 1.3 100 100 N, SMA -20~+70 60×60×26

UIYBCC6060D

136~174 Full 0.65 20 1.25 100 100 N, SMA -20~+70 60×60×26

UIYBCC3538A

380~460 Full 0.5 18 1.3 300 300 N, SMA -30~+70 35×38×15

UIYBCC3538B

400~470 Full 0.5 20 1.25 300 300 N, SMA -30~+70 35×38×15

UIYBCC3538C

600~800 Full 0.4 18 1.3 300 300 N, SMA -30~+70 35×38×15

UIYBCC3434B

700~900 Full 0.4 18 1.3 200 200 N, SMA -30~+70 34×34×22

UIYBCC3434A

800~1000 Full 0.4 20 1.25 200 200 N, SMA -30~+70 34×34×22

UIYBCC3232A

960~1215 Full 0.4 20 1.25 200 200 N, SMA -30~+70 32×32×18

(GHz) BW IL.

UIYBCC7272A

0.8~2.0 Full 1.3 13 1.6 300 300 N, SMA +10~+70 72×72×27.4

UIYBCC6466A

1.0~2.0 Full 0.6 17 1.4 100 100 N, SMA +10~+70 64×66×26

UIYBCC3538D

1.0~1.3 Full 0.4 20 1.25 300 300 N, SMA -30~+70 35×38×15

UIYBCC3434C

1.0~1.5 Full 0.6 18 1.3 200 200 N, SMA -20~+65 34×34×22

UIYBCC5049A

1.35~2.7 Full 0.7 16 1.35 200 200 N, SMA 0~+70 50.8×49.5×19

UIYBCC5049B

1.5~3.0 Full 0.7 16 1.35 200 200 N, SMA 0~+70 50.8×49.5×19

UIYBCC3232B

1.6~2.0 Full 0.5 18 1.3 200 200 N, SMA -20~+65 32×32×18

UIYBCC3232C

1.7~2.2 Full 0.6 18 1.3 200 200 N, SMA -30~+70 32×32×18

UIYBCC4040A

1.7~3.5 Full 0.7 17 1.4 200 200 N, SMA 0~+70 40×40×20

UIYBCC3232D

1.8~2.4 Full 0.5 18 1.3 200 200 N, SMA -30~+70 32×32×18

UIYBCC3234A

2.0~4.0 Full 0.6 17 1.35 100 100 N, SMA +10~+70 32×34×21

UIYBCC2528A

3.0~6.0 Full 0.5 18 1.3 100 100 N, SMA -20~+70 25.4×28×14

UIYBCC2122A

4.0~8.0 Full 0.5 18 1.3 100 100 N, SMA -30~+70 21×22.5×15

UIYBCC1920A

6.0~18.0 Full 1.5 11 1.8 60 60 SMA -30~+70 19×20.3×14

UIYBCC1319A

8.0~12.0 Full 0.5 18 1.3 60 60 SMA -30~+70 13×19×12.7

UIYBCC1920B

8.0~18.0 Full 0.8 14 1.5 60 60 SMA -30~+70 19×20.3×14

UIYBCC1215A

12.0~18.0 Full 0.6 18 1.35 50 50 SMA -30~+70 12×15×10
