8pon Epon Olt With 10g Uplink - China

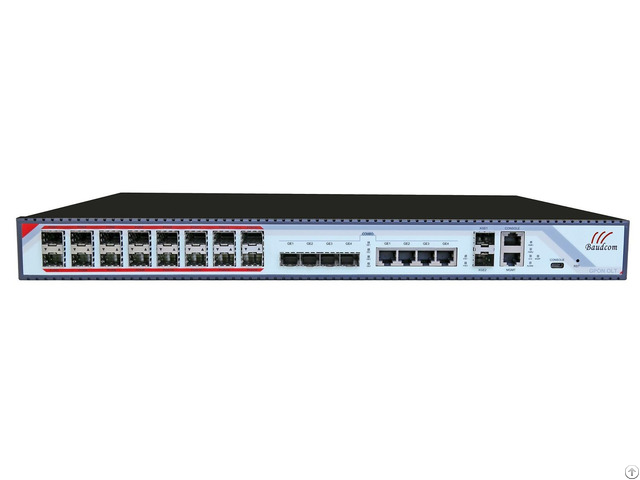

Model: BD-OLT-8000U BD-OLT-8000U is 1U high 19 inch rack mount product.

The features of the OLT are small, convenient, flexible, easy to deploy, high performance.

It is appropriate to deploy in an compact room environment.

The OLT can use for “Triple-Play”, CPN, IP Camera, Enterprise LAN and IOT applications.

It is a high performance products.

BD-OLT-8000U provides 1 USB interface, 4GE(copper) and 4GE optical interface, 4*10Gb uplink interface, and 8 EPON ports for downstream.

It can support 512 ONUs under 1: 64 splitter ratio.

Item BD-OLT-8000U Chassis Rack 1U 19 inch standard box

Uplink Port QTY 12

Copper 10/100/1000M auto-negotiable, RJ45: 4pcs Optical interface 4 GE

10Gb uplink interface 4*10Gb

PON Port QTY 8

Physical Interface SFP Slots

Connector Type 1000BASE-PX20+

Max splitting ratio 1: 64

USB Port QTY 1

Connector Type Type-C

Management Ports 1*100BASE－TX outband port; 1 CONSOLE port

PON Port Specification (Apply to Baudcom PON module) Transmission Distance 20KM

PON port speed Symmetrical 1.25Gbps

Wavelength 1490nm TX, 1310nm RX

Connector SC/PC

Fiber Type 9/125μm SMF

TX Power +2.5～+7dBm

Rx Sensitivity -27dBm

Saturation Optical Power -6dBm

10Gb SFP+ Port Specification (Apply to Baudcom 10Gb module) Transmission Distance 10KM

PON port speed 8.5-10.51875Gbps

Wavelength 1310nmTX, 1310nmRX

Connector LC

Fiber Type Single mode with dual fiber

TX Power -8.2~+0.5 dBm

Rx Sensitivity -12.6dBm

Management Mode SNMP, Telnet, CLI management mode.

Management Function Fan Group DetectingPort Status monitoring and configuration management;

Layer-2 switch configuration such as Vlan, Trunk, RSTP, IGMP, QOS, etc; EPON management function: DBA, ONU authorization, ACL, QOS, etc; Online ONU configuration and management User management Alarm management Layer-two Switch Support port VLan and protocol VlanSupport Vlan tag/Untag, vlan transparent transmission;

Support 4096 VLAN Support 802.3dd trunk RSTP QOS based on port, VID, TOS and MAC address IGMP Snooping 802 - x flow control Port stability statistic and monitoring EPON Function Support port-based rate limitation and bandwidth control;In compliant with IEEE802.3ah Standard

Up to 20KM transmission Distance Support data encryption, group broadcasting, port Vlan separation, RSTP, etc.

Support Dynamic Bandwidth Allocation (DBA) Support ONU auto-discovery/Link detection/remote upgrade of software; Support VLAN division and user separation to avoid broadcast storm; Support various LLID configuration and single LLID configuration .

Different user and different service could provide different QoS by means of different LLID channels.

Support power-off alarm function, easy for link problem detection Support broadcasting storm resistance function Support port isolation between different ports Support ACL and SNMP to configure data packet filter flexibly Specialized design for system breakdown prevention to maintain stable system Support dynamic distance calculation on EMS online Support RSTP, IGMP Proxy Layer-three Route Support static unicastSupport static multicast

Support RIP routing protocol Support dynamic multicast protocol with active source Backplane Bandwidth 112G

Dimension 440*296*44(mm*mm*mm)

Weight 4.50kg

Power Supply 220VAC AC: 100V～240V, 47/63Hz

-48DC DC: -36V～-72V

Power Consumption 58W

Operating Environment Working Temperature 0～50℃

Storage Temperature -40～85℃

Relative Humidity 5～90%(non-condensing)
