BAUDCOM BD-OLT-3600 Series complies with ITU-T G.

984/G.

988 and meets requirements about GPON OLT in Network Access Technical Requirements.

It fully supports CTC2.0, automatic discovery and cooperation with ONUs of different manufacturers.

BAUDCOM BD-OLT-3600 Series supports the symmetric uplink 1.25Gbps/downlink 2.5Gbps PON transmission rate, efficient bandwidth usage and Ethernet services, helping carriers to provide reliable services to their users.

Its coupling ratio ups to 1: 128, and its support of different hybrid ONU networks minimize the carrier’s investment.

BAUDCOM BD-OLT-3600 Series, based on the edge-cutting technologies, is strong in functions.

A few of its functions such as QoS guarantee, SLA and DBA can be easily listed out.

Well Interaction: automatic discovery and compatible with ONT;

Hardware Redundancy: dual main control, dual power redundancy;

Hot Swap: BD-OLT-3600 Series adopts the modularized designed.

Each service card hot swap;

System Capacity: BD-OLT-3600 Series supports 128 PON ports and at most 16K ONT;

Environmental Protection: low power consumption and low operating cost.

Bus Optical Fiber Protection: the link can be automatically switched when trouble occurs in the optical fiber;

Power Characteristics: supports dual-AC, dual-DC and AC/DC power supply.

The power supply supports modularized design, hot-swap and EMC-3 standard.

It well adapts to the environment.

Attributes BD-OLT-3600-06 BD-OLT-3600-10

PON interface characteristics Downlink 2.5Gbps/uplink 1.25Gpbs transmission rate

Class B+, Class C+ GPON module Maximum coupling ratio: 1: 128 ONU authentication mechanism Slots 2 slots for the main control board and 4 service slots 2 slots for the main control board and 8 service slots

Backplane bandwidth 4Tbps 4Tbps

Switching capacity 960Gbps 1920Gbps

Max 10GE port number 48 96

Max GPON interface number 64 128

MAC address capacity 128K

Standards ITU-T G.

984/G.

988

IEEE 802.1D, Spanning Tree IEEE 802.1Q, VLAN IEEE 802.1w, RSTP IEEE 802.3ad physical link static/dynamic aggregation (LACP) Ethernet – II QoS Backpressure flow control (half duplex)

IEEE 802.3x flow control (full duplex) IEEE 802.1p, CoS WRR, SP and FIFO queue schedule Limiting the uplink/downlink rate based on each ONU DBA and SLA VLAN Port-based VLAN, 4K VLAN table

QinQ and flexible QinQ Multicast L2 Multicast

IGMP Snooping MLD Snooping Reliability Unidirectional Link Detection (UDLD)

Hot swap of the GPON optical module on the expanded slot Optical path protection of GPON Abnormal luminescence ONU detection such as long luminescence Network security Limiting the maximum number of users on each port

Port isolation Packet storm control Flow-based ACL access control function Transmission data encryption on the PON interface Configuration management Various management modes such as CLI, SNMP and TELNET

Conducting software upgrade through TFTP Debug output Physical Characteristics 399.7mm×482.6mm×548mm 533.1mm×482.6mm×548mm

Installation: standard 19 inch rack-mounted

Environment Operating environment: 0℃～45℃; 10%～85% non-condensing

Storage environment: -40℃～80℃; 5%～95% non-condensing

Power Supply Input voltage: AC90～264V, DC 36～72V

Dual-power input, DC/AC power supply and hot-swap Model Description

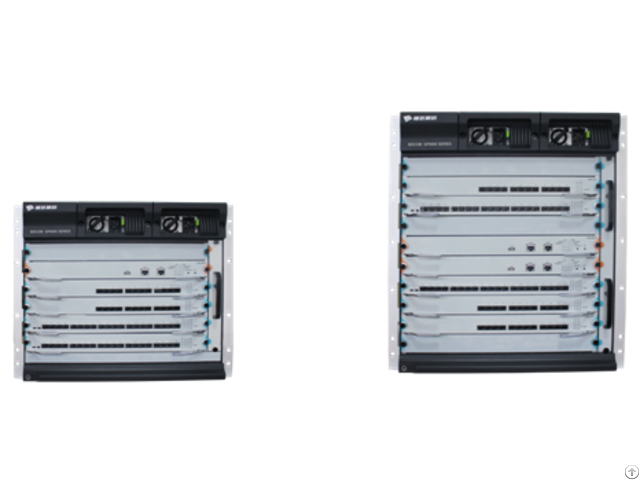

BD-OLT-3600-06 BD-OLT-3600-06 OLT chassis (standard fan board, 2 power supplies at most, 6 expansion slots, 2 slots are for main control board, 4 service slots)

BD-OLT-3600-10 BD-OLT-3600-10 OLT chassis (standard fan board, 2 power supplies at most, 10 expansion slots, 2 slots for the main control board, 8 service slots)

LP66-MSU BD-OLT-3600 Series OLT Main Control Board

LP66-16GPON-4TE OLT GPON interface board with 16 ports (16 GPON SFP ports and 4 10GE SFP+ ports, no optical module)

LP66-12TE-SFP+ OLT GPON 10GE interface board with 12 ports (12 10GE SFP+ ports, no optical module)

PWR-1200-AC BD-OLT-3600 OLT AC power supply (AC 90~264V input voltage, 1200W max power)

PWR-1200-DC BD-OLT-3600 OLT DC power supply (DC 36～72V input voltage, 1200W max power)

OLT-GSFP-B+ OLT SFP module, Class B+ standard, downlink 2.5G/uplink 1.25G, TX wavelength 1490nm, RX wavelength 1310nm, SC interface

OLT-GSFP-C+ OLT SFP module, Class C+ standard, downlink 2.5G/uplink 1.25G, TX wavelength 1490nm, RX wavelength 1310nm, SC interface
