30dbm Output Compact Full Functional High Power Fiber Amplifier Module - USA
price: 3783.00 Dollar US$

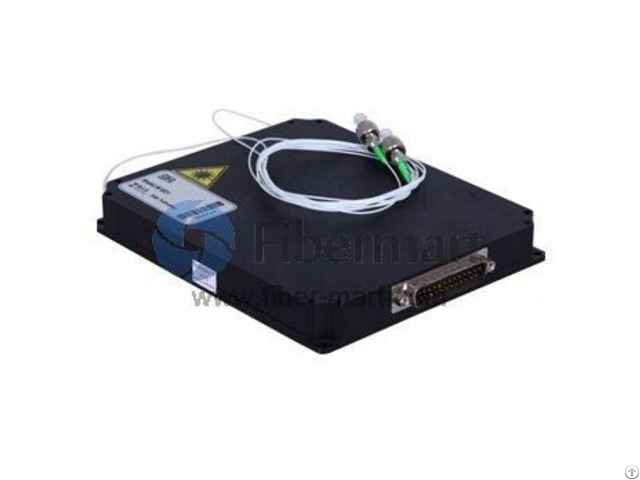

30dBm Output Compact Full Functional High Power Fiber Amplifier Module
This Compact Full Functional High Power Fiber Amplifier Module is a kind of C-Band, high power and full-function optical fiber amplifier module.
The key components of the product are high reliability multimode PUMP laser and the double cladding optical fiber.
The module has standard RS-232 or RS-485 interface, adopts high reliable and low power consumption design as well as adopts APC, AGC, ATC and ACC control modes.
The high stability and high precision MPU system to ensure the control, adjustment and display are intelligent andeasy.
This module is highly reliable amplifier module especially designed for FTTx, CATV, FDC and HFC analog applications.
Compared with conventional amplifiers, it is more compact, powerful and have higher reliability and stability.
The high power amplifier module employs patented technology for pump dump (Patent No.
ZL200820150412.3), and the patented technology for the laser driver circuit (Patent No.
ZL200820150413.8), to get better and more stable performance.
It employs 5V DC power supply for operation.
Features
Single 5V DC operation
Output Power: 30dBm
Input Power: -3~10dBm
Extremely low CSO: ＜-70dBc
Compact size: 150×125×24 (mm)
Wide operating temperature range
APC, AGC, ATC and ACC control modes
Low noise figure: less than 4.5dB at 0dBm input
High stability and reliability: MTBF＞150000 hours
Perfect status monitoring interface: RS-232 or RS-485
Er-Yb co-doped double cladding amplification technology: Pump dump patent
Applications
FTTH system
Power actuator
Data transmission
Optical distribute system
Research and Design area
Detection for gas absorption
Free space optical communication
Power booster for tunable sources
Analog CATV Transmission System
Test/Measurement for optical device/systems Mechanical Dimension
150×125×19mm
Company Contact:
- Posted By: Fiber-MART.LLC
- Phone: + 86 13632576201
- Address: 118 East Melinda Lane, Phoenix, Arizona , USA
- Email:
- Website: https://www.fiber-mart.com
Published date: August 23, 2018
- Business Description: Fiber Optic Network, Fiber Transceiver,
Bulk fiber optic cables, Fiber tester and Tools, Cable Management
