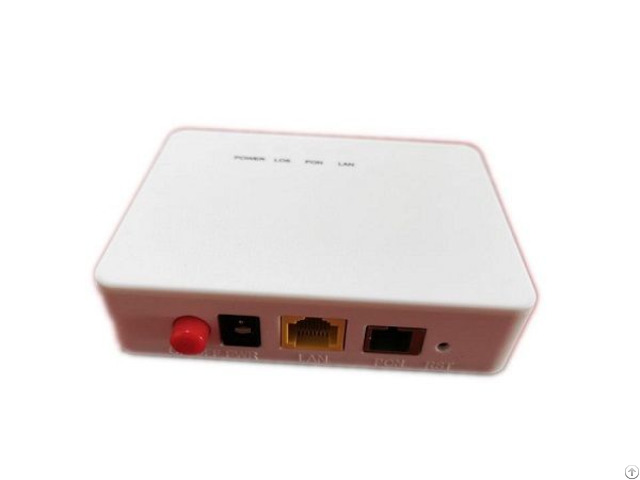

1ge Epon Ftth Onu - China

It takes the PTMP (point to multipoint)network topology, effectively collects and converges scattered Ethernet services, and provides the 10/100/1000M Ethernet standard RJ45 interface, smoothly interconnects with existing networks.

The Dynamic Bandwidth Allocation (DBA) mechanism enables all users to share the 1Gbps bandwidth reasonably, guaranteeing a reliable QoS.

Supports IGMP multicast, effective use of broadband;

Supports multicast VLAN;

Full management through an Operation Administration Maintenance (OAM) protocol based on IEEE802.3ah, including configuration, alarm, performance monitoring, fault isolation and security management, etc.

It supports remote management through OLT and local console management as well.

Supports FEC and DBA;

Supports IEEE802.1Q VLAN protocol; Supports IEEE 802.1p protocol; Supports remote loopback and network status diagnosis； Supports flow statistics； Supports storm control;

Support NAT;

Support PPPOE;

Support DHCP Server Client;

Support Route;

Module EPON ONU 1GE User nterface 1 10/100/1000M RJ45 port.

PON Transmission speed : upstream/downstream symmetrical 1Gbps

Network coverage radius: 20KM Optical receive sensitivity: ≥-27dBm Continuous light power: 0dBm~+4dBm Security: SFU authentication mechanism Protocol Compliant with IEEE 802.3ah

YD/T 1475-2006 IEEE 802.1D, Spanning Tree IEEE 802.1Q, VLAN IEEE 802.1w, RSTP IEEE 802.3ad (LACP) Ethernet–II, Ethernet-SNAP Route Support NAT

Support PPPOE Support Server Client Support Route VLAN Port-based VLAN

GVRP IEEE 802.1Q VLAN QOS Backpressure flow control(half-duplex)

IEEE 802.3x flow control(full-duplex) Prevent Head Of Line IEEE 802.1p, CoS WR, SP and FIFO queue scheduling algorithm Port rate limit Safety IEEE 802.1x, access control based upon Port; support local and remote RADIUS.

CHAP, EAP certification; Storm control, port protection, Management Various management modes such as Web, TELNET

Debug function.

Size 90mm(L)×80mm(W)×22mm(H)

Environment Operating temperature: 0℃～60℃;

Operating humidity: 10%～85% non-condensing Storage temperature: -40℃～80� �;

Storage humidity: 5%～95% non-condensing Power supply 110～240VAC 12V/0.5A DC

power interface size: 2.1mm/5.5mm Power Consumption 2.5W
