1064nm Optical Fiber Isolator Up 300mw - China

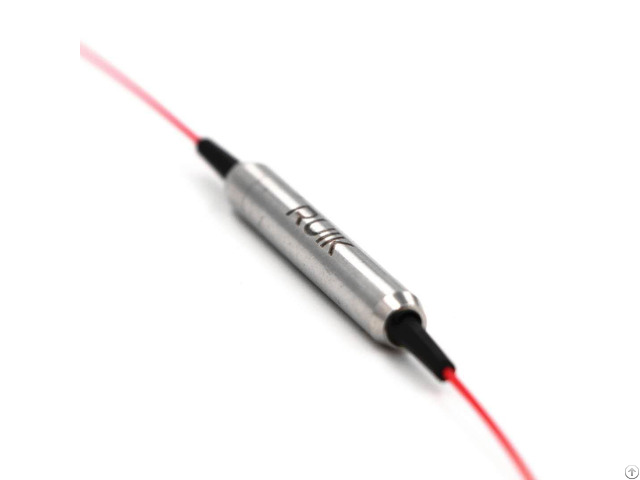

Ruik's polarization maintaining optical isolator is a device, which allows the light to transmit through the passive route from input to output, while blocking the reversed direction.

Optical Isolator (1064nm, Faraday Based) Features Applications

Low Insertion Loss Communication Systems

High Return Loss Test Instruments

High Isolation Fiber Sensor

High Stability & Reliability Research Specifications

Parameter Unit Value

Stage - Single Dual

Grade - P A P A

Center Wavelength nm 1064

Operating Wavelength Range nm ±5

Typ.

Peak Isolation dB 40 38 55 52

Min.

Isolation at 23℃ dB 32 28 45 42

Typ.

Insertion Loss at 23℃ dB 1.5 1.6 2.4 2.6

Max.

Insertion Loss at 23℃ dB 1.8 2.2 3.2 3.4

Min.

Return Loss (input/output) dB 50/50 50/50 50/50 50/50

Max.

Polarization Dependent Loss at 23℃ dB 0.15

Max.

Optical Power(CW) mW 300

Max.

Tensile Load N 5

Operating Temperature ℃ -5~+50

Storage Temperature ℃ -40~+85

For device with connector, IL is 0.3dB higher, RL is 5dB lower.

Package Dimensions Ordering Information PIIS-1111-23-444-567-88

1111 -Center Wavelength: 1064=1064nm

2 -Grade: P=P grade, A=A grade

3 -Stage: S=Single-core stage, D=Dual-core stage

444 -Fiber Type: 001=PM1550, 002=PM1310, 003=PM980, 004=Hi1060, 008=SMF-28E

5 -Package Dimension： 0=φ5.5x35mm, S=Specified

6 -Pigtail Type: 0=250μm bare fiber, 1=900μm loose tube

7 -Fiber Length: 0=0.8m, 1=1m

88 -Connector for In, Out: 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, 4=LC/UPC, 5=LC/APC
