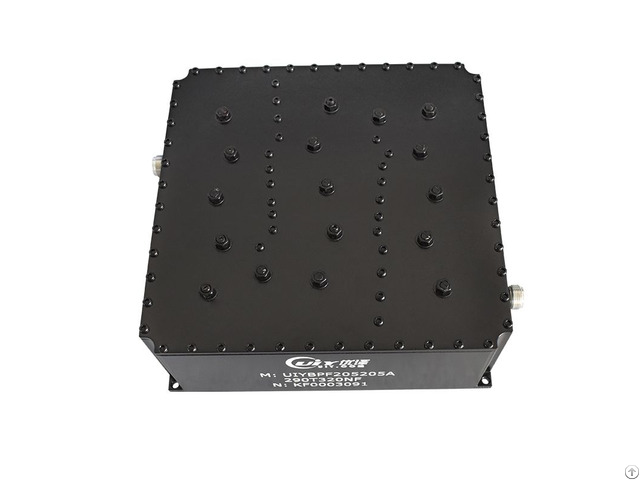

Vhf Uhf 290 320mhz Rf Band Pass Filters Avg Power 300w - China
price: 490.00 Dollar US$
Model Number: UIYBPF205205A290T3 20NF
Pass Band: 290~320MHz
Insertion Loss: 1.0dB
Ripple: 0.5dB
VSWR: 1.25
Rejection: 105dB@230~27 0MHz 105dB@340~380MHz 70dB@DC~230MHz 70dB@380~1650MHz
AVG Power: 300W
Peak Power: 1500W
Connector Type: N-F
Temperature: -40~+85°C
Dimension: 205*205*80mm Our products RF Isolators
RF Circulators
RF Filters
Power Divider/Splitter
Duplexer/Triplexer
Hybridge Combiner
Coaxial Termination
Coaxial Attenuator
Directional Coupler
Waveguide to Coaxial Adapter
Company Contact:
- Posted By: UIY Inc.
- Phone: +8675583748888
- Address: No. 8, lane 1, Xintun East Zone, Longgang District, 518172, Shenzhen , Guangdong Province, China
- Email:
- Website: https://www.uiy.com/
Published date: April 6, 2023
- Business Description: Professional Radio Frequency (RF) / Microwave Device Supplier
Professionally customized Radio Frequency (RF) / Microwave Components Manufacture.
UIY Inc.
was established in 2003 in Shenzhen, China, with the registered capital of 200 million yuan (about 32 million dollars).
It is an integrated enterprise, which includes research, production, marketing and service for the civilian and military microwave communications device.
The products are sold all over the world.
Product catalog:
Isolator / Circulator
Filter / Duplexer / Triplexer
Power Divider / Splitter
Hybrid Combiner / Directional Coupler
Coaxial Termination / Attenuator
Waveguide to Coaxial Adapter
Tx & Rx Multicoupler
Our products are in full compliance with RoHS, ISO9001 and ISO14001 international standard, with high-precision testing equipment and QC team, and we have established a strict quality control system.
We are committed to providing our customers with high-quality products for a long time.
