Rubber Din Abrasion Test Machine - China

The Main Purpose:

Din rubber abrasion testing machine is mainly used for the abrasion resistance detection of an elastic material, conveyor belts, rubber, tires, shoe soles, synthetic leather and other soft materials.

Standard：

DIN 53516, JIS K6369, GB/T 20991, GB 20265-2006, GB20266-2006, SATRA TM174, BS 903, JIS K6264, GB/T9867, ISO4649 Main Principles:

What a load under a certain level in gauze, grinding a cylindrical cross-section sample determined stroke on the gauze surface, by measuring the amount of wear quality of the sample, and then by the density of the sample to calculate the volume of the amount of abrasion, in order to the test comparable, and finally be subject to the standard rubber, the test results are expressed as relative volumetric wear to verify the amount of gauze-based or full representation with respect to the amount of wear of a certain standard wear rubber base.

Main Feature:

With a small sample, save time, friction way of non-repetition, low noise, high efficiency, good reproducibility and easy to operate and so on.

Din rubber abrasion tester main parameters:

1 - The test piece: φ16mm, 6 ~ 15mm (D)

2 - Clamp load: 2.5N

3 - Weight load: 2.5N, 5N

4 - The fixture lateral displacement volume: 4.2mm / wheel every lap

5 - Abrasive cloth: 60 #

6 - Roller Diameter: 150mm

7 - Roller Length: 460mm

8 - The roller speed: 40rpm

9 - predetermined stroke: 40m / 20m

10 - Wear Speed: 0.32m / sec

11 - Inclination: 3 ° test piece and the roller support shaft vertical angle

12 - Volume: 70 × 30 × 30cm

13 - Weight: 61kg

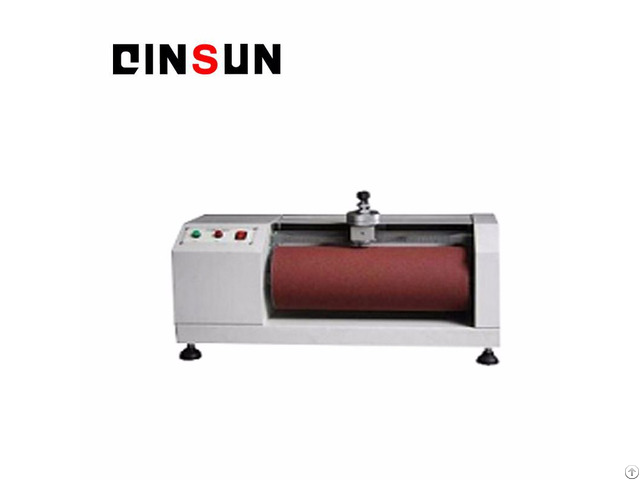

14 - Power source: 1∮, AC220V, 3A Product Display
