High Quality Silica Aerogel Blanket For Thermal Insulation - China

Description

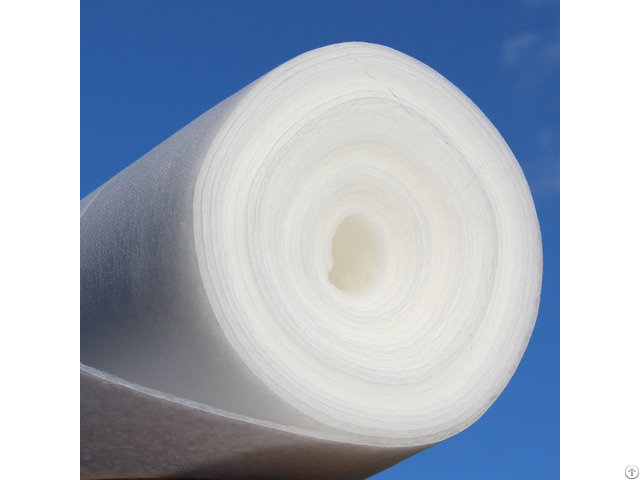

Aerogel Insulation Felt/Panel is made of nano-silica aerogel as the main material and combined with glass fiber cotton or pre-oxidized fiber mat by special process.

It is characterized by low thermal conductivity, certain tensile and compressive strength, and is a new type of thermal insulation material.

Specification

Model SACB-0-3 SACB-0-6 SACB-0-10

Thickness(mm) 3 6 10

Width(mm) 1400/1500(customizable)

Color White

Permitted useful temperature range(°C) -200~650 -200~650 Fiberglass composite: -200~650

Ceramic fiber composite: 600~1000

Density(kg/m³) 200±20 200±20 200±20

Linear expansivity 4.2×10-6

Dimensional stability(max) 1% Test method GB/T 8811-2008

Compressive property (min), kpa, @10% 60 Test method GB/T 13480-2014 (min), kpa, @25% 120 Test method GB/T 13480-2014

Burning behavior A1 Test method GB/T 20285-2006

The smoke performance level SR-2 Drip content level ST-2 Smoke toxicity of the FED's value, (max) 0.1 Corrosion resistance pass Test method GB/T 3810.1-2006

Hydrophobicity, (%) >99.8 Test method GB/T 10299-2011

Tensile strength(min), (kpa) Fiberglass composite: 100

Ceramic fiber composite: 80 Test method GB/T 17911-2011

Remarks : Silica aerogel fiberglass and ceramic fiber technical parameters Advantages

--Lower thermal conductivity coefficient

Thermal conductivity coefficient less than 0.016w/(m, k)at room temperature, several times or even dozens of times lower than traditional heat preservation materials, and with better heat preservation effect.

--Thinnest and lightest thermal insulating material

Under the same heat preservation effect, the dosage of our company’s SiO2 aerogel composite material is only 1/5 to 1/3 of traditional materials’ .

So it can be applied to dense pipeline and narrow space and achieve a good effect of heat or cold preservation.

And greatly convenient for installation and save the cost of the protective layer.

--Water-proof and moisture-proof, easy to store

It is hydrophobic and porous with hydrophobicity of 99%.

--superior fireproof performance with safety class of gr.

A1

SiO2 aerogel composite material has excellent fire resistance and smoke resistance.

In a fire or accident, this property can well protect the pipeline and equipment and fight for more time for disaster relief and response.

--resistant to high pressure, acceptable brutal construction

--As a new green and environmentally friendly material, it can be safely used and easily installed.

The rolled SiO2 aerogel insulation composite can meet the needs of all shape or design, and it’s easy to cut and install according to the comples shapes, bending and space limitations.

Application

Construction: Interior and extrior wall, door, floor, ceiling, roof, partitions, fireproof door

Cold Storage: fridge, freezer, refrigerators, cold storage, medical incubator, blood bank, medicine box, refrigerated container.

Veicle: Engine heat shield, catalytic exhaust pipe

Aerospace: Engine, black box

Building materials industry furnace: All types industry kiln, including rotary kiln, shuttle kiln, roasted kiln

Metallurgy: torpedo tank, steel ladle, tundish, coke oven door Feature

It has the thermal insulation performance and surface hydrophobicity and excellent flame retardant properties.
