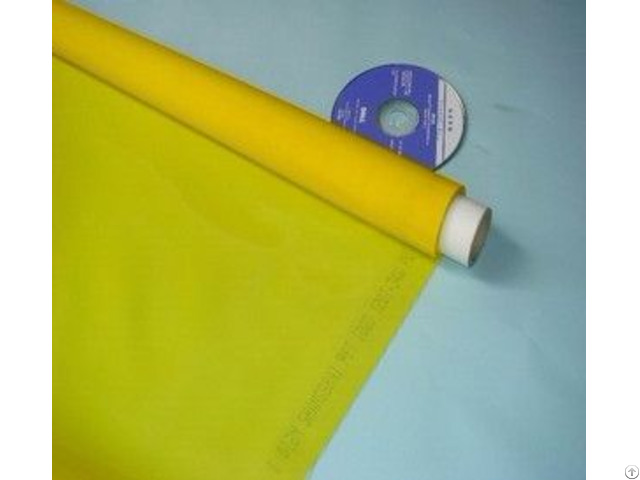

High Tension 43t 110 Mesh White Yellow 100 Percent Polyester Screen - China

Polyester Printing Mesh/Silk Mesh For Textile Printing

1 - 100% polyester, high tension, low elongation

2 - width: 127cm-360cm

3 - ISO9001, ROHS

4 - white and yellow

Competitive Advantage:

Improved fabric strength

Faster tension stabilization

High tension and low elongation.

Precision bore, well-distributed, stabilization, superior stencil adhesion.

Accurate printing precision control; holds finer detail with no compromise in stencil durability.

Time-dependent stability and good cohesion with sensitive emulsion.

Model Number: 24T- 165T

Material: : 100% polyester

Weave type: : Plain

Elasticity: : Low

Colour: : White, yellow

Width: : 127cm - 360cm

Description:

In the field of mesh fabrics for screen printing, nowadays the low-elongation polyester screen mesh has already replaced the traditional silk mesh and is dominating the screen printer in the world due to its tensile strength, elastic memory and resistance to chemicals, abrasion heat and moisture.

It is said "can be used to print on anything except air and water", which is exactly what mesh filtration co.

is producing now in a wide range of mesh counts, and our products offer significant advantages over the traditional monofilament polyester.

Applications:

Our polyester screen printing mesh are used widely in textile printing, electronic printing, PCN, CDS, ceramics, glass, stained paper printing, labei plate, advertising, plastic.

etc.

Polyester Printing Screen Technical Datas:

model mesh

count APERTURE THREAD

DIAMETER OPENING thickness INK THROUGH VOLUME

THEORETICALLY

mesh/cm micron micron % micron cm3/m2

24-100 60 316 100 57 136-145 64.4

32-100 80 212 100 46 145-155 69

39-55 100 195 55 56 88-96 55.0

43-80 110 147 80 40.8 7-132 53

47-55 120 152 55 51 88-96 47.6

48-70 120 135 70 41 108-120 45.5

54-55 135 8 55 47 88-96 44.5

54-64 135 115 64 38.5 95-105 38.9

54-70 135 108 70 34 108-120 40

64-45 160 105 48 43 73-82 36.5

64-55 160 98 55 38 85-95 36.1

64-64 160 88 64 30 95-105 30.7

72-45 180 92 45 40 68-76 33.1

72-48 180 90 48 36 75-84 33.1

72-55 180 81 55 30 88-97 26.6

80-45 200 75 45 36 65-74 27.7

80-48 200 72 48 33 75-84 28.7

90-48 230 56 48 25 77-85 23.5

100-40 250 58 40 33 62-71 21.3

110-40 280 48 40 27 65-71 18.4

110-34 280 54 34 35.5 52-57 20.2

110-34 305 45 34 30.5 52-57 18.4

140-34 355 31 34 19.5 56-62 14.4

150-31 380 36 31 29 43-47 13.1

150-34 380 30 34 20.5 56-62 14.9

165-31 420 31 31 23 52-58 12.88
