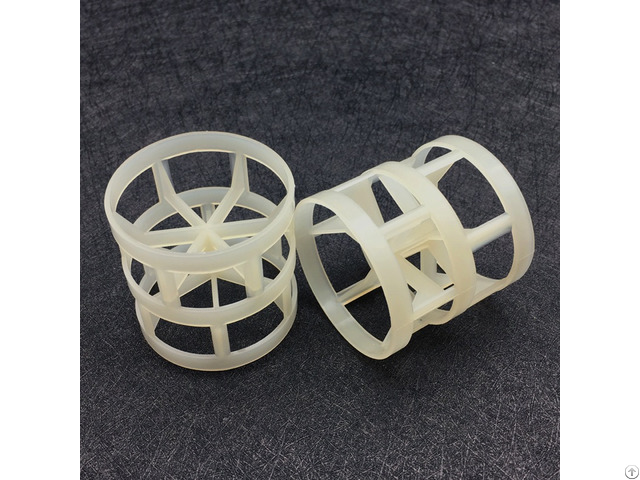

Pp Pvc Pvdf Pe Pall Ring 25mm 50mm - China

Description: It has the advantages of large flux, low resistance, high separation efficiency and large operating flexibility.

Under the same pressure drop, the processing capacity can be more than 50% larger than that of the Raschig ring.

At the same throughput, the pressure drop can be reduced by half, and the mass transfer efficiency can be increased by about 20%.

Compared with the Raschig ring, this packing has the characteristics of large production capacity, low resistance, and greater operating flexibility.

Under normal circumstances, the pressure drop can be 50% larger than the Raschig ring under the same pressure drop-and the pressure drop is higher than the Raschig ring under the same treatment.

50%-70% smaller, the tower height can also be reduced Technical Parameter:

Specification of Plastic Pall Ring

Material: PP, RPP, PE, PVC, CPVC, PVDF, etc.

Dia (mm) D*T

(mm) Surface Area

(m2/m3) Free Volume

(%) Bulk number (pcs/m3) Bulk Density

(kg/m3) F Factor

(m-1)

16 16*1.1 274 91 180000 90 249

25 25*1.2 175 90 53500 49 239

38 38*1.4 115 89 15800 42 220

50 50*1.5 112 90 6500 42 154

76 76*2.6 73 92 1930 34.7 94 Application：

drying towers, absorption towers, washing towers, regeneration towers, etc.

in the chemical, metallurgical, and gas oxygen production industries.

Package：

Super sack & Wooden case.
