Platinum Electrode For Hydrogen Rich Water Ionizer - China

Electrolysis of water, that is, water generates hydrogen and oxygen through the direct current power.

Some hydrogen is dissolved into water in electrolysis process, and the hydrogen-rich water is formed.

The water dissolved water has a strong reduction capability, it can neutralize the body's blood and cells of reactive oxygen species (free radicals), remove the free radicals in the skin of the body, to avoid the skin within the network of fibrin from damage, so that the skin is protected.

It also has these functions, such as whitening, losing weight, enhancing lipid metabolism, curing diseases and other effects.

The core part of hydrogen electrolysis equipment is electrolytic cell, while the electrode material is the key to the electrolytic cell.

As the anode area is of strong acid character in the process of electrolysis, the electrode must be acid and corrosion proof.

Therefore, it can not use nickel, iron and other cheap materials, but to use platinum-plated electrode.

Shaanxi Elade New Material Technology Co., Ltd is a professional manufacturer of platinum electrodes with 30 years of technical experience.

The platinum electrodes Elade produced for hydrogen-rich cup are of strong corrosion resistance, stable performance, high output current density, low working voltage and long working life characters.

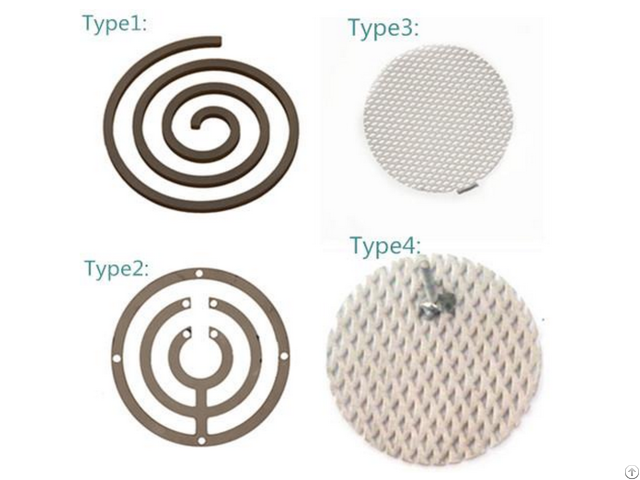

Parameters of platinum electrode for hydrogen rich water ionizer: Substrate material: Gr1 Ti Electrode column: Gr1 Ti Electrode column connection: welding, spot welding or screw fixation Coating process: high temperature sintering Coating composition: platinum Precious metal coating thickness: 0.25-5 μm Operating temperature: ≤ 65 ℃ Operating pH: 2-12 Operating current density: ≤ 2000A / m2 Coating Features: Platinum and titanium substrate combined with a solid, stable performance, high output current density, long operating life Shapes: mesh, plate, tubular, rod, wire, or customized Advantages: High corrosion resistance, long operating lifespan, anode dimensional stable, insoluble electrode, high current density, low operating voltage; low energy consumption, high production capacity; DSA light weight, reduce labor intensity; the base metal titanium can be reused.

Test: Standard: "electrolysis water machine CAS124-2007" "electrolytic cell anode coating HG / T2471-2011" Condition: 0.5mol/ H2SO4; temperature: (40±1)oC; anode current density: 2.0A / cm2, anode surface area: 1.0 cm2, electrodes distance: 1.0 cm, Adhesion: wipe the electrode surface with filter paper no foreign material; Uniformity : X-ray fluorescence spectrometer ≤ 10% Applications: hydrogen-rich cups, electrolysis water cups; hydrogen-rich generators; Cautions: 1 - To protect the coating surface against scratching, collision, grinding in transportation or installation process, prevent from oil, strong corrosive substances, deformation and other effects on the titanium electrode.

2 - To avoid short circuit between the anode and cathode, should not reverse the direction of the electrode .

3 - In strict accordance with the norms of the operation, the current is too large, the voltage is too high, a sudden power off, the solution concentration is too high, temperature, impurity ions and other factors will affect the coating titanium electrode effect.

Company Contact:

• Posted By: Shaanxi Elade New Material Technology Co., Ltd.

• Phone: 8613571492870

• Address: No.32, Chuanghui Road, New Industrial Hi-Tech Zon, Xi'an , China

• Email:

• Website: http://www.eladeanode.com

• Business Description: Shaanxi Elade New Material Technology Co., Ltd located in Xi An Hi Tech Development Zone, is a certified high & new technology company, specialized in R&D, manufacturing and selling titanium and various substrates electrodes, as well as nonferrous metals and their deep processed products.



  Elade has its own professional technical team who has been cooperating closely with XiAn Jiaotong University on researching and developing electrodes in several years.

  With continuous improvement and innovation on design and processing technique, its products win good reputation and possess more competitive in the market; especially the metal electrodes suitable to various chemical industries had reached the international advanced level both on the product quality and performance.



  Elade is mainly engaged in metal materials like titanium, tantalum, niobium and zirconium as well as various composite anode and cathode materials applicable to the field of electrochemistry, which have been successfully used in many fields, such as production of chlor alkali, chlorate and perchlorate, electroextraction of non ferrous metals, electro deposition, electroplating, electrophoresis, electro dialysis, electro synthesis, ionized water synthesizer, cathodic protection, formation of aluminum and copper foils and after treatment.

  Elade also provides integrated design, manufacture and technical consulting service, including surface anodic oxidation and corrosion protection through Ru and Pd coatings for titanium equipments, electrodeposition, electroplating water treatment and so on.

  The company has complete advanced management system, production and testing equipments, and has obtained ISO9001 Quality System Certification.
