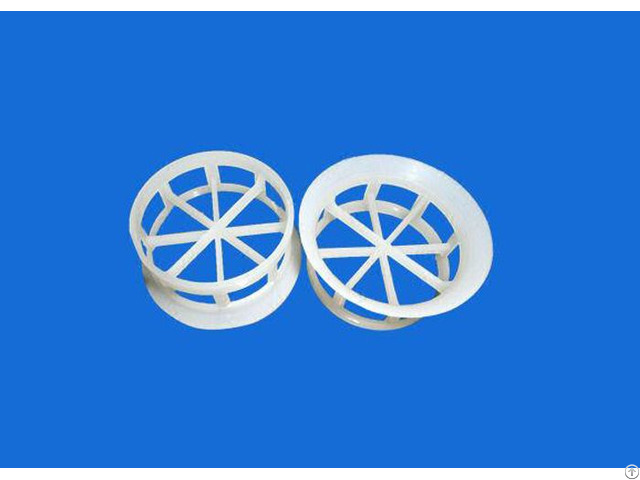

Plastic Cascade Ring

Plastic Tower Packing

Structured Packings

SPECIFICATION:

The Parameters of Plastic Ladder Ring (CMR) Model SizeD*H*δ/mm No.

Per Volumen/m3 Specific Aream2/m3 Void Volume% Drying Packing Factorm-1

Dg25 25X12.5X1.2 81500 228 90 312.8

Dg38 38X19X1.4 27200 132.5 91 175.8

Dg50 50X25X1.5 10740 114.2 92.7 143.1

Dg76 76X38X2.6 3420 90 92.9 112.3

ADVANTAGES:

Ladder Ring(Cascade mini ring), draws the benefits of Rasching ring and Pall ring, the Height-diameter ratio is 1: 2, Because of increasing the Cone flanging, ladder ring can reduce the resistance of gas and the intensity of packing, as well as gas-liquid contact area.

Application: Desulfurization of amine, synthesis of amine decarbonization, common decompression, such as methanol separation, separation of organic acids and so on.

Materials: PP, PE, RPP, PVC, CPVC, PVDF, etc

Company Contact:

• Posted By: Jiangxi Pingxiang Dier Chemical Packing Co., Ltd.

• Phone: 0799-6611562

• Address: High-tech industrial Park, Western Economic Development Zone of Pingxiang, Jiangxi, China, Pingxiang , Jiangxi , China

• Email:

• Business Description: Jiangxi Pingxiang Dier Chemical Packing Co., Ltd.

  Jiangxi Pingxiang Dier Chemical Packing Co., Ltd. is located in Pingxiang city which is famous as “Pearl of Ganxi - hometown of chemical packing”.

  The factory is located in high-tech industrial park, western economic development zone, beside 320 national highway.

  Its only take one hour from Changsha Huanghua airport to our plant.

  It have developed and convenient location advantages.

  Our company is founded in 1992, which predecessor is Pingxiang Anyuan Chemical Industry Packing Factory.

  Along with the development of the business and the extended of company , now the company renamed as Pingxiang Dier Chemical Packing Co., Ltd. Its major centralizing enterprise and governing units of chemical industry development, and is the member of Petro China and the Chemical Industry Prospecting Design Association.

  Dier Chemical cover an area of 15000 square meters, with a construction area of 8000 square meters.

  With fixed assets of RMB25 million and 218 staff members, and 22 people have got middle and senior technical titles.

  Dier Company can produce all kinds of chemical packing products including metal packing, ceramic packing, plastic packing and tower internals, with 18 series and more than 70 products.

  Our annual capacity is 8000 tons per year.

  Dier is large-scale chemical packing manufacturer with annual sales amount of 200 million.

  Dier company hires many consultants who provide forceful technical supports for product quality and new product R&D.

  These professors are from Shanghai Research Institute of Chemical Industry, Tianjin University, South China University of Technology, etc.

  In the face of the fierce market competition, we have attained ISO 9001: 2008 international Quality System Certification in 2004 - Our chemical packing products are sold to all kinds of the chemical industry enterprise all over in China, including coking chemical, fertilizer, chemical industry, alkali, salt industry, pharmaceutical, oil refining, acid, power, environmental protection and so on, and feedback is very good.

  And weve attained the foreign trade self-supporting import and export authority in 2008, the products are sold well in the United States, Canada, Brazil, Peru, Russian, Germany, France, Israel, Kuwait, Korea, Japan and other more than fifty countries.

  Dier Chemical have strong technical strength and excellent production equipment, strict quality assurance system, were persist in “people-oriented, strives for the survival by the quality”, based on the principle of “mutual benefit and common development”, based on the management idea of “technology develops the market, quality ensuring the market, and service consolidated the market”.

  With enthusiasm to service our customers, we sincerely welcome new and old customers to cooperate with us.
