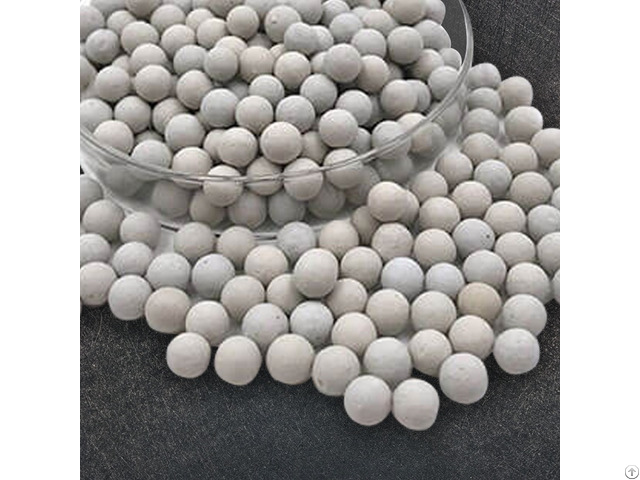

Ceramic Ball 23% 26% 25mm 50mm Support Media - China

Description: It is called Ceramic Ball 23%~26% Al2O3 - Which is equal to Denstone®2000 Support Media.

It is made of high quality chemical-porcelain clay materials, which has quite excellent stability, high mechanical strength and resistance to thermal shock, This makes them all ideal choice for support of all types of catalyst.

Technical Parameter:

Type Inert Alumina Ball-23

Color Light gray

Shape Ball

Chemical composition Min.

% Max.

% Usual %

Al2O3 23 26 24.5

SiO2 64 75 68.5

Al2O3 + SiO2 90 96 93

Fe2O3 / 1.0 0.9

TiO2 / 0.5 0.46

CaO / 0.5 0.42

MgO / 0.5 0.38

Na2O / 2 1.12

K2O / 3.5 3.28

Physical properties Leachable Iron (%) ≤0.1

Apparent Porosity by Weight (%) D≥10mm ≤0.4

D=6mm ≤1.0

D=3mm ≤3.0

H2O absorption (wt.

%) ＜1.0

Acid resistance (%) ＞99.8

Alkaline resistance (%) ＞85

Bulk Density (g/cm3) 1.35

(lb/ft3) 84

Specific density (kg/m3) 2300

(lb/ft3) 144

Moh’s hardness (scale) ＞6.5

Thermal conductivity (w/m2 - k) 0.9-1.0

Specific heat (J/kg.

℃) 628-837

Max.

Operating Temperature (℃) 1050

(℉) 1922

Thermal expansion (%)

(500℃) 0.20

Thermal Shock Stability (times)

(500 ℃ then water cooling) 10

Geometric properties Nominal Size (mm) 3 6 10 13 16 19 25 38 50

(inch) 1/8 1/4 3/8 1/2 5/8 3/4 1 1.5 2

Crush Strength Min.

(lbs) 84 209 282 616 770 1738 1936 2156 3564

(kg) 38 95 128 280 350 790 880 980 1620

(N/PC) 372 931 1254 2744 3430 7742 8624 9604 15876 Application:

● Mainly used in the petroleum, chemical industry, fertilizers, natural gas, environmental protection and other industries.

As a catalyst in the reactor to cover support media and tower packing.

Package:

25kg plastic bag

1350kg super sack

250kg~280kg steel drum
