13x Hp Molecular Sieve - China

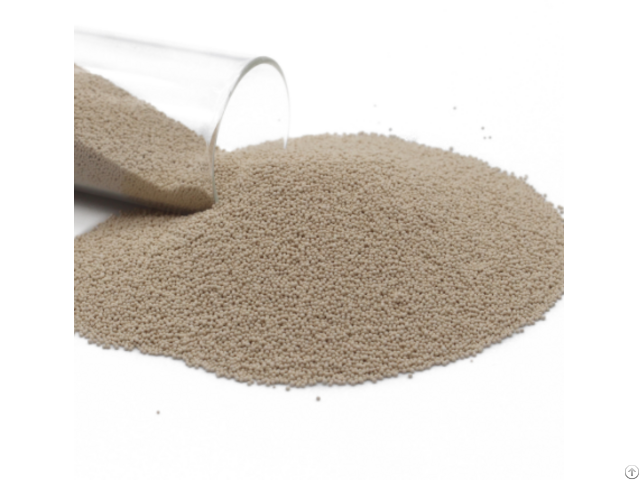

13X HP Molecular Sieve

YAMTOP oxygen enrichment molecular sieve series are special used in PSA/VPSA system.

They have good N2/O2 selectivity, good crush strength and low loss on attrition, which is cost-effective for concentrating oxygen from air.

They are widely used in industrial/Medical oxygen concentrator in ozone production filed, Aquaculture field for fish farming, Waste water treatment field, medical oxygen market.

etc.

Their concentating purity up to 93%+-3%, having good reputation in market.

Model 13X HP Molecular Sieve Lithium Based Molecular Sieve

Diameter 0.4-0.8MM 1.6-2.5MM 0.4-0.8MM 1.6-2.5MM

Bulk density ≥0.62g/mL ≥0.62g/mL ≥0.63g/mL ≥0.63g/mL

Crushing strength / ≥25N/piece ≥30N/piece

Static N2 Adsorption (1bar, 25°C) ≥8mL/g ≥8mL/g ≥22.5mL/g ≥22.5mL/g

N2/O2 Separation

(1bar, 25°C) ≥3 ≥3 ≥6.2 ≥6.2

Attrition ≤0.3wt.

% ≤0.3wt.

% ≤1wt.

% ≤1wt.

%

Moisture Content ≤0.5wt.

% ≤0.5wt.

% ≤0.5wt.

% ≤0.5wt.

%

Application Medical care oxygen generator, small, portable oxygen concentrators Capacity: 1L/min-10L/min Industrial and Medical Oxygen Generator/Plant, hospital oxygen concentrators of PSA system Capacity: <300Nm3/hour Medical care oxygen generator, small, portable oxygen concentrators Capacity: 1L/min-10L/min Industrial and Medical Oxygen Generator/Plant, hospital oxygen concentrators of PSA system Capacity: 300-10000Nm3/hour

Purity 93%±3% 93%±3% Over 93% Over 93%

Handle & Storage:

It should be handled to avoid generation of dusty conditions at the workplace.

Storage in a dry warehouse is recommended.

Open packages should be resealed to prevent contamination and adsorption of water or other gases and vapors.

The material in bag-in-box should be used within 12 months, while bag-in-steel drum should be used within 24 months.

Regenaration:

YAMTOP molecular sieve can be regenerated by either heating in the case of thermal swing process or by lowering the pressure in the case of pressure swing process.

Put the molecular sieve in a vacuum muffle furnace for 1 hour at 550℃.
