Various Shapes High Temperature Sic Heating Element Furnace - China

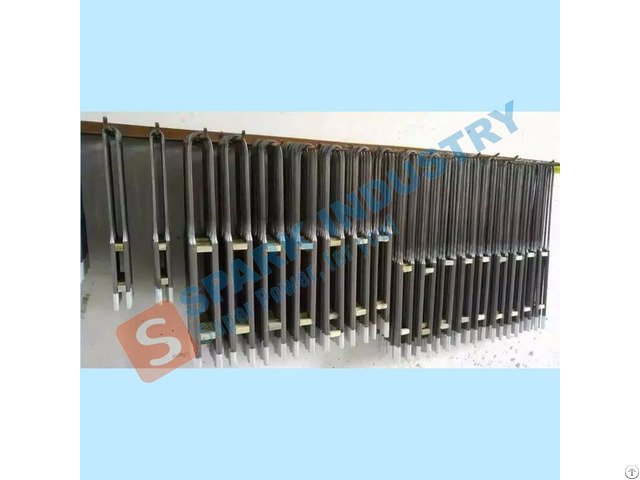

Product Description Silicon Carbide Heating Elements is a kind of non-metal high temperature electric heating element.

Silicon Carbide Heating Elements is made of selected high quality green silicon carbide as main material, which is made into blank, siliconization under high temperature and recrystallized.

In oxidizing atmosphere, its service temperature can reach 1450ºC and continuous use life can reach 2000 hours.

Installation and Operation 1 - In order to keep the furnace temperature and the charges uniform of each element, resistance values must be matched first before installation, arrange those with close current values on the same circuit.

2 - As the heating elements are made of ceramic, avoid damage from mechanical shock.

3 - The diameter of a piercing hole drilled through the furnace should be about 1.5 times the diameter of the element's end section.

Size under 20mm is suitable for bricklayers up to 150mm in thickness.

Size under 25mm is suitable for bricklayers up to 250mm in thickness.

When bricklayers are thicker than the above thickness, widen the piercing hole diameter more than 5mm.

When SG type element is used, take 5mm more margin than the above value.

4 - Silicon Carbide elements are electrically conductive.

Care should be taken to avoid electric leakage due to direct contact with a conductive material or electric shock to a human body.

Silicon Carbide Heating Elements Applications Electronic industry Metallurgy Al/Zn-industry Ceramic industry Float glass industrya Optical glass industry Laboratory equipment and so on
