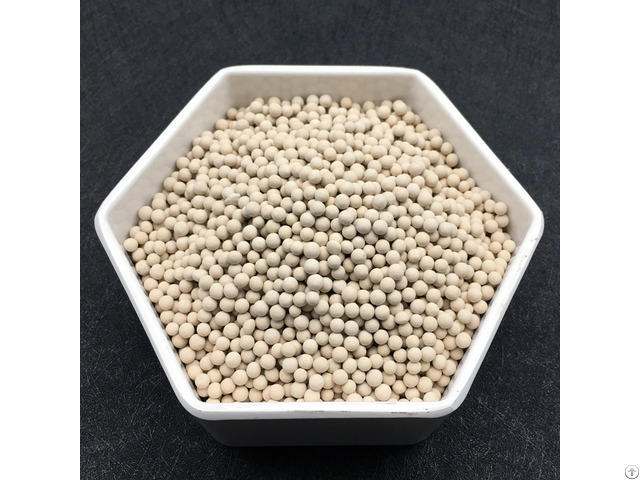

Molecular Sieve 4a 3 5mm Air Dryer - China

Description:

A kind of alkali metal alumino-silicate, in the sodium form of the Type A crystal structure.

It could absorb the molecules which critical diameter is not more than 4 angstroms.

The selective adsorption performance of water is higher than any other molecules.

It is one of the most used molecular sieve varieties in industry.

Chemical Molecular Formula:

Na2O·Al2O3·2Si O2·4.5H2O.

(SiO2 : Al2O3 ≈2).

Technical Parameter: Properties Unit Bead Cylinder

Diameter mm 1.6-2.5 3.0-5.0 1.6 3.2

mesh/inch 8*12 4*8 1/16” 1/8”

Bulk density g/ml 0.7±0.02 0.70±0.02 0.68±0.02 0.68±0.02

Crushing strength N/pce ≥35.0 ≥80.0 ≥30.0 ≥80.0

Size ratio up to grade wt% ≥98.0 ≥98.0 ≥96.0 ≥96.0

Static H2O adsorption wt% ≥21.5 ≥21.5 ≥21.5 ≥21.5

Static CH3OH adsorption wt% ≥15.0 ≥15.0 ≥15.0 ≥15.0

Package Moisture wt% ≤1.5 ≤1.5 ≤1.5 ≤1.5

Wear ratio wt% ≤0.2 ≤0.2 ≤0.40 ≤0.40 Application:

● Drying and removing of CO2 from natural gas, LPG, air, inert and atmospheric gases, etc.

● Drying of pharmaceutical packaging, electronic components and perishable objects.

● Dry air

● Drying of organic liquids such as refrigerants, LPG, and gasoline.

Package:

800kg super sack

55gallon(150kg) steel drum

25kg Carton box/Paper drum
