Psa Oxygen Generator System - China

Technology Brief:

There has been a growing demand for small and medium-sized oxygen equipment with rapid development of the national economy in recent years.

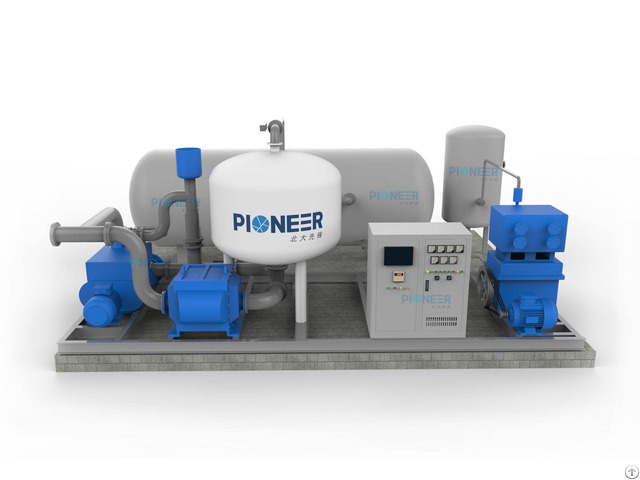

Beijing Peking University Pioneer Technology Co., Ltd. (hereinafter referred to as PIONEER), seizing this market opportunity with its advanced technology and engineering experience of more than 100 sets of oxygen equipment, has produced the customized the new skid-mounted PSA oxygen equipment through its continuous development and innovation.

The PSA-O2 generator meets a wide range of requirements for users in need of small and medium-sized oxygen equipment.

It has remarkable advantages on its stability, simplicity, efficiency and energy saving.

Production Capacity

50Nm3/h-450Nm3/h, equivalent to liquid oxygen of about 1.7 TPD – 15.4 TPD.

Typical Applications

The PSA-O2 generator is widely used in water treatment, flue gas ozone denitrification, kiln combustion, pulp bleaching, aquaculture, medical and other fields…

Technical Advantages

1 - Advanced single-vessel process

Compared with the traditional double-vessel process, the world-leading single-vessel process requires less equipment but brings more stable performance with easier operation and maintenance.

2 - High efficiency lithium-based molecular sieve

The third generation of high-efficiency lithium-based oxygen generation molecular sieve (PU-8) has a lithium ion exchange rate of over 99%, bringing plenty of advantages such as high strength, high nitrogen and oxygen selectivity, large bulk density, uniform particles, long service life, etc.

In combination with the proprietary automatic filling technology, the stability of the molecular sieve bed is effectively guaranteed.

3 - Special valves for oxygen generation

Special valves for oxygen generation are more suitable for VPSA oxygen process, offering good sealing, fast switching speed, stable performance and other characteristics, along with outstanding low failure rate and easy maintenance.

4 - Modular integrated design

Compared with the conventional double-vessel process, the equipment is more compact and the plot area can be reduced by more than 20%.

5 - Low operation cost

The power consumption of oxygen is as low as 0.35kWh/Nm3, the annual maintenance cost is 30% lower than that of a common PSA oxygen generator.

The annual comprehensive operation cost is also reduced by more than 50%, compared with the cost of common PSA oxygen generator or purchasing liquid oxygen.

Technical Principle

Adsorption process: the pressurized ambient air is passed through the adsorption vessel, where the impurity gases (i.e. predominantly nitrogen) are preferentially adsorbed by the molecular sieve.

Oxygen is enriched at the top of the adsorption vessel, then enters an oxygen buffer tank to supply oxygen to the downstream; Desorption process: after the molecular sieve is saturated by adsorption, the valve is switched to allow the blower to reverse act and vacuumize, thus restoring the adsorption capacity of the molecular sieve.

In this stage, oxygen is continuously supplied to the downstream from the oxygen buffer tank.

Company Contact:

• Posted By: Beijing Peking University Pioneer Technology Co., Ltd.

• Phone: 18866674203

• Address: No 151 North Ave, ZhongGuanCun Haidian District, Beijing , Beijing , China

• Email:

• Website: https://www.vpsatech.com/

• Business Description: Beijing Peking University Pioneer Technology Co., Ltd. (here in after referred to as “PIONEER”) affiliated to Peking University, is mainly engaged in design and manufacture of PSA gas separation technology and equipment, also related adsorbent and catalyst.

  Pioneer can provide advanced and mature gas separation solutions for chemical industry, steel, non-ferrous metallurgical, glass fiber, paper making, electronic, refuse incineration and water treatment.

  Up to date, over 200 sets of medium/large-scale equipment have been built, with performance reaching the international advanced standard.

  PIONEER has one R&D center, one pilot base, one Beijing key Laboratory of Engineering, two sorbent plants and one valve manufacturing plant.

  Under the powerful R&D support of Peking University and the platform support of chemistry and molecular engineering college, Pioneer is endeavoring to be the leader in PSA gas separation industry with its powerful R&D team, specialized adsorbent, rich experience, integrated service system and honest business concept, based on industrial gas, energy saving and environment protection.

  Main businesses

  VPSA-O2 engineering technology and complete sets of equipment

  PSA-CO engineering technology and complete set of equipment

  PSA-H2 engineering technology and complete set of equipment

  Engineering technology for separating CO and H2 from the steel plants exhaust and complete set of equipment

  Engineering technology for purifying and separating industrial exhausts including calcium carbide and yellow phosphorus and complete set of equipment

  Technical consulting, operational services and commissioned development of new products and technologies

  Sorbents and catalysts
