Copper Mould Tube And Plate - China

Copper Mould Tube & Plate

We specially in supplying Copper Mould Tube, Crystallizing equipment of continuous casters, Mould cooling jacket, Repair of Metallurgical Copper Mould Tube, etc.

Equipments & Spare parts for Continuous Casting Machine.

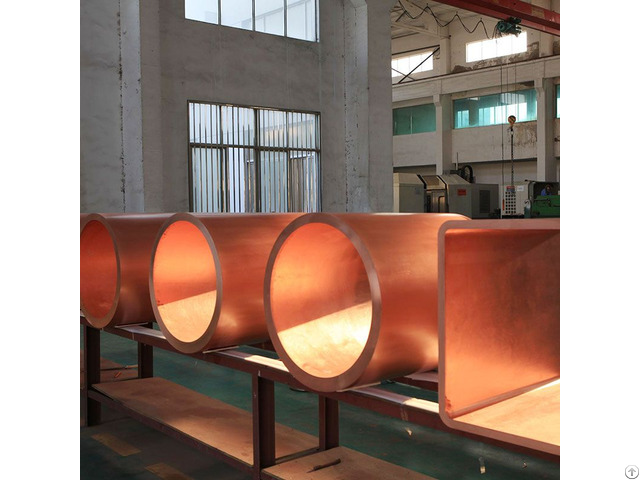

1 - Copper mould tube( square, rectangle and round )

2 - Crystallizing equipment of continuous casters

3 - Mould cooling jacket.

4 - repair of copper tube moulds COPPER MOULD ALLOYS

The copper alloys chosen for the moulds must maintain their physical properties at the operating temperatures of the continuous casting process.

The temperature gradation from the inner wall of the mould to the outside face of the mould can cause serious distortion problems, and Metallurgical Copper Mould Tube is imperative that the correct alloy is chosen for the various operating conditions.

Square Copper mould tube STANDARD MATERIALS

Phosphorus de-oxidised copper

This alloy has been proven to be excellent for the manufacture of moulds in the continuous casting of billets.

The main composition of this alloy are Cu +Ag 99.90min, P0.0015 / 0.040.

Copper -Silver alloy

The addition of a small amount of silver, whilst not increasing the melting point of copper, does increase the recrystallisation temperature by almost 100℃, and also helps to give better thermal conductivity at the operating temperatures.

This alloy is normally used in moulds for the continuous casting of blooms and slabs .

In this case, the moulds are much thicker than in the billet moulds, and the moulds temperature can be higher.

The main composition of this alloy are Cu+Ag99.90 min.

Ag 0.08 / 0.12 O 0.004 / 0.012.

Copper Mould Tube supplier

The continuous casting of molten steel into billets, blooms and slab products, has been highly refined over the years into an extremely sophisticated system.

The continuous casting process is expected to produce metallurgically sound products at the lower possible cost, and this is being achieved in many steelworks throughout the world.

Copper moulds have played an important role in the development of the continuous casting process.

Their funcition is to receive the molten steel and to allow rapid heat transfer from the steel to the cooling water to enable quick solidification.

The mould must exhibit excellent thermal conductivity, be resistant for thermal erosion, and be resistant to distortion from thermal stress.

So far only copper and a few copper alloys meet the above conditions, both economically and technically.

Mould cooling jacket supplier SOLIDIFICATION

The rate of solidification in the continuous casting process dictates the speed of production.

The molten steel, which is in contact with the inner faces of the copper mould, starts to sllidify as rapidly as the heat is extracted, forming a shell.

The shell increases in thickness as more heat is extracted, and eventually total solidfication is achieved.

the process is similar to the solidification of ingots in ingot moulds.

In continuous casting, the whole process is speeded up, with the aim to produce and homogeneous shell growth.

Consequently, the mould is an important part of the continuous casting process, and the manufactured quality of the mould plays and important role in their length of life.
