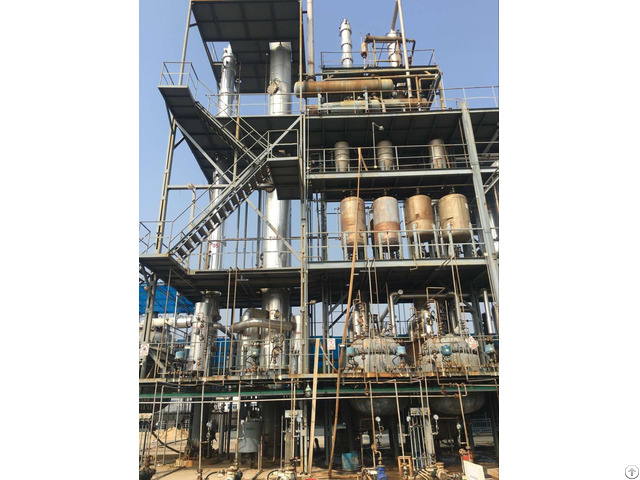

Methyl Acetate Plant - China

The methyl acetate production process SL TEC propose is based on the condensation of acetic acid and methanol over a solid acid catalyst.

This kind of catalyst is the best solution when high yields, low acetic acid and methanol consumption, consistent product and low equipment corrosion are required on reliable basis.

Under normal operation, this catalyst has an average service life of three years or longer.

The reaction conditions are moderate, however, as methyl acetate, methanol and water will form binary and tertiary azeotropic mixtures, it is very difficult to prepare high purity product by conventional methods.

In the traditional process, one reactor and nine distillation columns are required to produce high purity methyl acetate.

And they have main disadvantages incl.

1 - The synthesis of methyl acetate is reversible, and due to the limitation of chemical equilibrium, the conversion yield is low.

2 - Methyl acetate-water binary azeotrope, methyl acetate-methanol binary azeotrope, and methyl acetate-methanol-water ternary azeotrope have boiling points quite close to that of azeotrope, thereby, it is difficult to separate and the product purification is very complicated.

3 - Large amount of non-reacted methanol and acetic acid are recycled in the system, which complicates the separation process and requires large equipment investment and results in high energy consumption.

Company Contact:

• Posted By: Hubei Sanli Fengxiang Technology Co., Ltd.

• Phone: +86 510 85120985-02

• Address: Room 1006, Block B, Optics Valley International Plaza, 889 Luoyu Road, Hongshan District, Wuhan , Hubei , China

• Email:

• Website: https://www.slchemtech.com

• Business Description: Hubei Sanli Fengxiang Technology Co., Ltd. (SL Tech) is a young technology company specialized in providing EPC contracting service and the import & export of chemical plants， with the headquarter located in China(Hubei) Pilot Free Trade Zone and an office in Wuxi.

  Also it is the shareholder of Wanian Jinze Electronic Material Co., Ltd. with 20, 000TPA methyl acetate production capacity, and Henan Bojie Energy Engineering Technology Co., Ltd. Dedicated to the diesels desulphurization by non-hydrogenation process.

  SL Tech has stuck to the path of the combination of production and research.

  Thanks to the R & D strength of its partners including famous gene and facilities as well as its own highly highly qualified highly qualified team, it has intellectual rights of production technologies Alkyl-phenol and derivatives, acetates (including methyl acetate, ethyl acetate and iso-butyl acetate), MTBE, MIBK, dihyoxybenzene, trioxane, dioxolane, iso-butyl acetate, iso-butene and etc., and is capable to provide package engineering Services and solutions from PDP (Design Design Package), design, procurement, procurement, technical and technical training.

  We are very proud to say we are one of the best teams expertized in chemical distillation-purification technology in China, from computer Aided simulation, lab verification and modification, pilot plant to commercialized plant.
