Horizontal Single Stage Chemical Process Pump - China

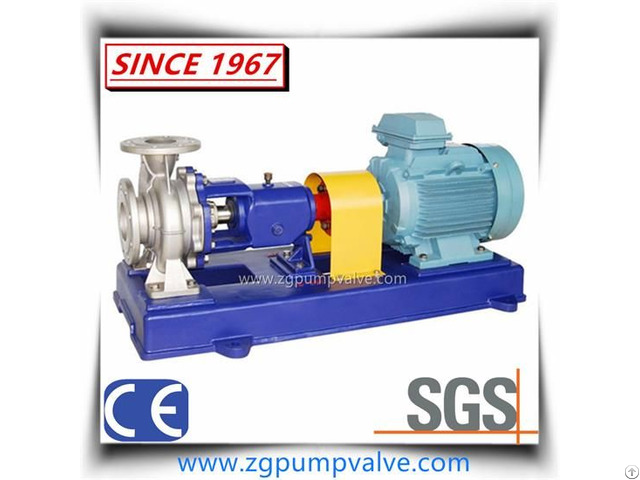

Horizontal Single Stage Chemical Process Pump

Brief introduction:

HZ series chemical process pump including HZ(closed impeller type), HZJ(semi-open impeller type) and HZQ(fully-open impeller type).

It is an elaborately developed chemical process pump of new generation which absorbed the advanced technology of both home and aboard, and eliminated the technical defects of IH and CZ chemical process pump, with the advantages of better anti-cavitation performance, stable sealing performance, smooth operation and easy maintenance.

The high interchangeability, transforming structures and various anti-corrosive materials satisfy the requirements of different applications, and therefore is widely used.

Parameters:

Flow rate: Q= 2~2050 (m³/h)

Total head: H=3~150 (m)

Pump speed: n=1450/2900rpm

Design temperature: T=-20~150ºC

Fluid s.

g: γ≤1.85

Pump diameter: 50~350mm

Application:

HZseries chemical process pump is suitable to pump clean fluids, fluids with small quantity of small particles and corrosive fluids.

The fluids including: inorganic acid, organic acid, petrochemical fluids, organic compounds and other corrosive fluids.

The HZ series pump is mainly applicable for:

1 - Refinery, petrochemical industries, coal mine process industry and low temperature projects.

2 - Chemical industry, paper-making, paper pulp industry, sugar industry.

3 - Water treatment plant, seawater desalination projects

4 - Power plant

5 - Environment protection projects

6 - Vessel and offshore industries.
