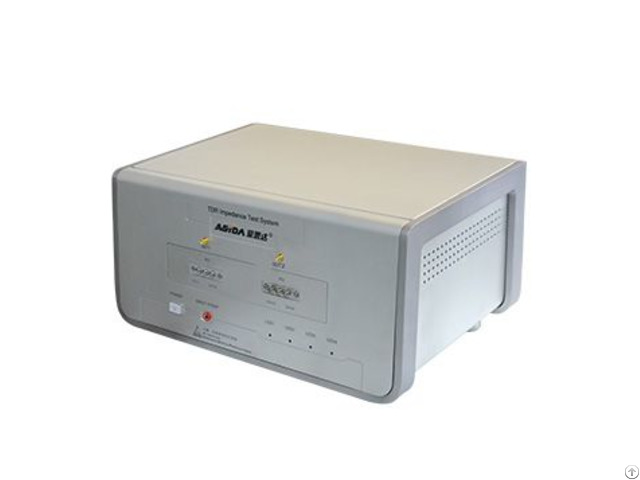

TDR Impedance Test System ZK3185

Lab Testing Machine

Usage

TDR impedance test system ZK3185 is suitable for high frequency circuit impedance test and S Parameters test.

Provide a set of rapid, accurate standard and economic TDR impedance test and signal loss testing solutions for PCB manufacturers.

It is also can be applied to the impedance test and S parameter test for wires and cables.

Features

(1)Precision

The TDR impedance test instrument is equipped with high-precision probes, high frequency coaxial switch.

With time-domain reflection, synchronous high-resolution sampling and multi points calibration techniques.

(2)Efficient

Test procedure integrated, multi-tasking one-button operation.

(3)Specialties

Displays test waveform analysis, statistical data analysis, automatically record test data, automatically generates test report and print, calibration open.

Parameters

Measuring Accuracy ±1% (50Ω)

Detection rate ≤1s for every point

Objects Controlled Impedance Measurement Range：20～150 Ω Measuring Range：0.02m～2m

Wave Bandwidth 0.1GHz～8.5GHz

Loss test S Parameter test

Dynamic range ≥100 DB
