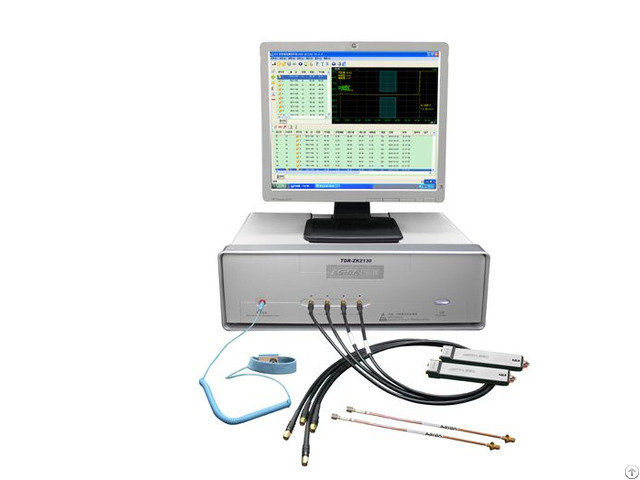

TDR Impedance Test Instrument ZK2130

Lab Testing Machine

Usage

The instrument is used in testing impedance of high frequency circuit boards which provides a fast, accurate, standard and economic solution to PCB Manufacturers.

It is also applicable for impedance testing of wire and cable.

Features

(1)Precision

The TDR impedance test instrument is equipped with high-precision probes, high frequency coaxial switch.

With time-domain reflection, synchronous high-resolution sampling and multi points calibration techniques.

(2)Efficient

Test procedure integrated, multi-tasking one-button operation.

(3)Specialties

Displays test waveform analysis, statistical data analysis, automatically record test data, automatically generates test report and print, calibration open.

Parameters

Measuring Accuracy ±1% (50Ω)

Detection rate ≤1s for every point

Objects Controlled Impedance Measurement Range：20～150 Ω Measuring Range：0.05m～2m

Wave Bandwidth 3GHz
