Raymond Mill Working Principle - China

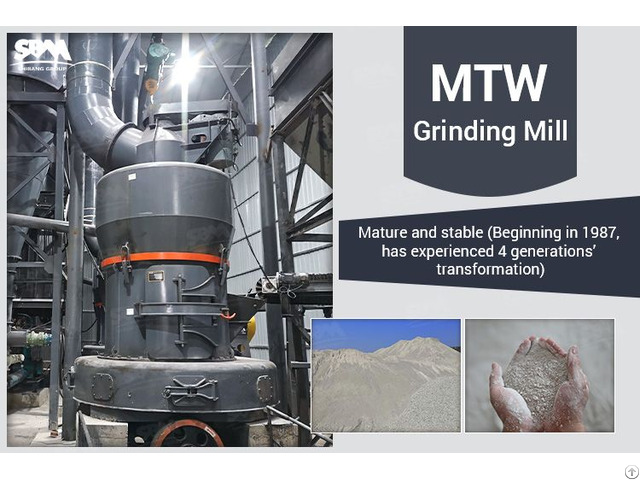

Raymond Mill has established itself as a renowned grinding equipment in various industries, revolutionizing material processing and setting new standards for efficiency and performance.

The Working Principle of Raymond Mill is based on the pendulum grinding principle.

Here is a step-by-step breakdown of how Raymond Mill operates:

Grinding: The material to be ground is fed into the grinding chamber through the feeding device.

It falls between the grinding rollers and the grinding ring.

Pendulum Motion: The grinding rollers, driven by the central shaft, perform a pendulum motion.

They swing outward under the action of centrifugal force generated by the rotation of the main shaft.

Grinding and Crushing: As the grinding rollers swing outward, they exert pressure on the material.

The grinding rollers crush and grind the material against the grinding ring.

The material is pulverized and ground into fine particles.

Classification : The airflow, generated by the fan, enters the grinding chamber through the air intake.

The airflow carries the fine particles upward, while the larger particles fall back onto the grinding ring for further grinding.

The classifier located at the top of the grinding chamber separates the fine particles from the coarse ones.

Fineness Control: The gap between the grinding rollers and the grinding ring can be adjusted using the adjusting device.

This allows for control over the fineness of the final product.

Collection of Finished Product: The fine particles, carried by the airflow, are collected by the cyclone collector and then discharged through the outlet.

The coarse particles that have not reached the desired fineness continue to be ground until they meet the required specifications.

Raymond Mill operates continuously as the grinding rollers and the grinding ring keep rotating, ensuring a continuous grinding process.

The feed material is continuously fed into the grinding chamber, and the pulverized material is continuously discharged.
