Lmp Series Single Cylinder Hydraulic Cone Crusher - China

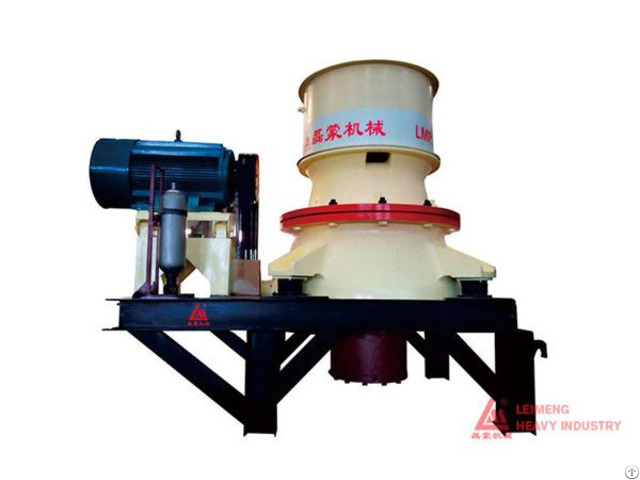

LMP Series Single Cylinder Hydraulic Cone Crusher

Type: Secondary crushing

Input size: 140-350mm

Processed Materials:

Concrete waste, iron ore, copper ore, gold ore, manganese ore, gravel, granite, river stone, basalt, limestone, dolomite, quartz, coal, etc.

Applications:

Mining, metallurgy, construction, highway, railway, and water conservancy, etc.

Description

Single-cylinder hydraulic cone crusher is suitable for metallurgy, construction, road building, chemical and silicate industry crushing, can be used to crush all kinds of medium hardness and above ores and rocks.

The hydraulic cone crusher's large proportion of size reduction ratio, high efficiency, low energy consumption, even final size suitable for crushing secondary and tertiary various ores and rocks.

Specifications Model Stoke Max.

Feeding size (mm) Weight

(kg) Motor

(kw) Closed edge material - dischaging port (mm) output (TPH) 8 10 15 20 25 30 35 40

LMP100 16 40 - 150 5800 75 - 90 40 - 50 45 - 55 60 - 70 80 - 90 85 - 95 20 40 - 150 5800 75 - 90 50 - 55 50 - 60 70 - 80 95 - 105 25 40 - 150 5800 75-90 55 - 65 7 5- 90 105 - 120 LMP200 18 40 - 120 9300 110 - 160 60 - 70 70 - 90 80-105 100 - 125 135 - 50 160 - 175 185 - 200 25 40 - 120 9300 110 - 160 90 - 110 110-130 130 - 15 160 - 180 185 - 210 32 40 - 120 9300 110 - 160 140-160 170 - 190 190 - 220 40 40 - 120 9300 110 - 160 200 - 220 220 - 240 LMP300 25 40 - 260 13400 200 - 250 100 - 120 110 - 130 135-155 160-180 190 - 210 210 - 235 240 - 260 32 40 - 260 13400 200 - 250 110 - 130 120 - 150 165 - 195 195 - 225 230 - 260 265 - 295 300 - 330 40 40 - 260 13400 200 - 250 150 - 170 205 - 230 245 - 275 290-320 325-355 LMP400 25 50 - 300 23500 220 - 315 130 - 150 155 - 175 180-200 210-230 230-255 260 - 280 330 - 350 32 50 - 300 23500 220 - 315 140 - 170 185 - 215 215-245 250-280 285-315 320 - 350 410 - 430 40 50 - 300 23500 220 - 315 225 - 250 265-295 310-340 345-375 LMP500 25 50 - 300 26500 250 - 355 140 - 160 160 - 180 190-210 240-260 270-290 310 - 330 350 - 370 32 50 - 300 26500 250 - 355 230 - 250 270-290 310-330 340-370 380 - 410 430 - 450 40 5 0- 300 26500 250 - 355 290 - 310 320 - 340 380 - 410 430 - 460 480 - 510 Advantages & Characteristics

1 - Advanced hydraulic technology implement overload protection and hydraulic adjustment discharge opening, simplify crusher structure and weight reduce.



2 - Oil lubrication, reliable advanced, improve life.

3 - Simple maintenance, easy operation.
