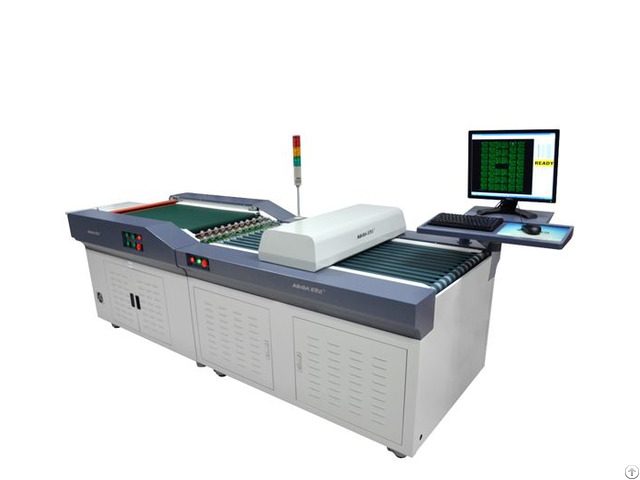

Hole Checker JK5200 PCB Maufacturing Machines

Usage

The machines are suitable for steps after PCB drilling and before PCB packaging, detecting the number of holes, hole diameter and quality (such as plug hole, foreign bodies, trough long and short defects), and make OK / NG judgment automatically.



Features

1 Precise

Adopting high-precision CIS scanning system, automatic positioning, image processing and detection technologies.

2 - Efficient：

(a)Equipped with double sorting equipment, which can detect two plates at the

same time.

3 - Characteristics

With network maintenance function, it can use several terminals to view NG board defect information synchronously, and to overhaul the NG board rapidly.

Parameters

Specifications of Hole Checker

Model JK5200

Accuracy Repeat Accuracy: ±30 µm

Measurement accuracy：

±20 µm(hole diameter≤1mm);

±30 µm(1mm≤hole diameter≤4mm);

±40 µm(4mm≤hole diameter);

Inspection Speed After drilling : 3m/min, 6.5m/min, 8m/min;

Final Inspection: 6.5m/min, 8m/min, 10m/min, 12.5m/min

Object Hole diameter: 0.10mm～10mm Size of Circuit Boards: 80mm×100mm～630×650mm Thickness Range of Circuit Board: 0.3mm～10mm Hole Margins: ≥0.10mm

Dimensions (L×W×H) 3510mm x 1160mm x1100mm

Weight About 800Kg
