Unipolar Type Hall Sensor Ah3144 - China

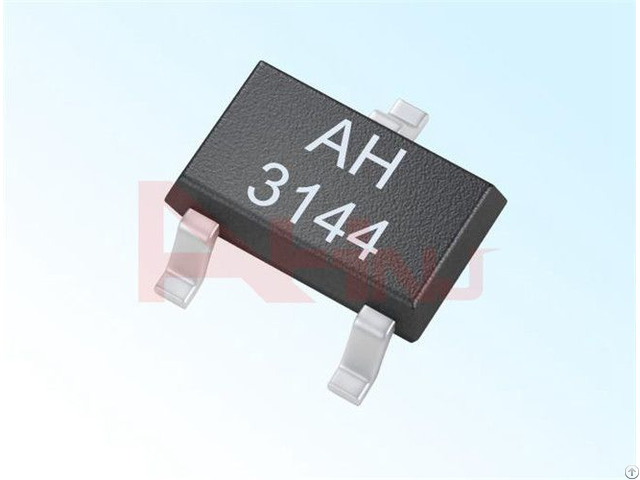

Unipolar Type Hall Sensor AH3144

Hall Sensor

Hall Switch

Features

Rated working voltage 4.5 V ~ 24 V, the limit voltages as low as 3.5 V;

Operating temperature range: -40℃ ~ 150℃;

Rated output current(sink) : 25 mA, the maximum output current(sink): 50 mA;

Switch response time is about 1μs, the operating frequency DC ~ 100 kHz;

Small temperature drift between operating point and release point;

There are variety of packages and out packing options;

No mechanical contact, no spark, switch signal stability, no shaking moment, high reliability and safety;

Products meet the EU RoHS instruction 2011/65 / EU and REACH regulations 1907/2006 / EU requirements.

Outline

When the “S” pole of magnet faces the mark surface of the sensor and is closed to sensor (B≥Bop), the sensor outputs low level; When magnet is far from sensor(B≤ BRP), the sensor outputs high level.

When the “N” pole faces the mark surface, the sensor is no response.

Stable Hysteresis((BH= |BOP- BRP|)ensure the Stable sensor’s switch status.
