Th Through Hole Rotating Hydraulic Cylinder - China

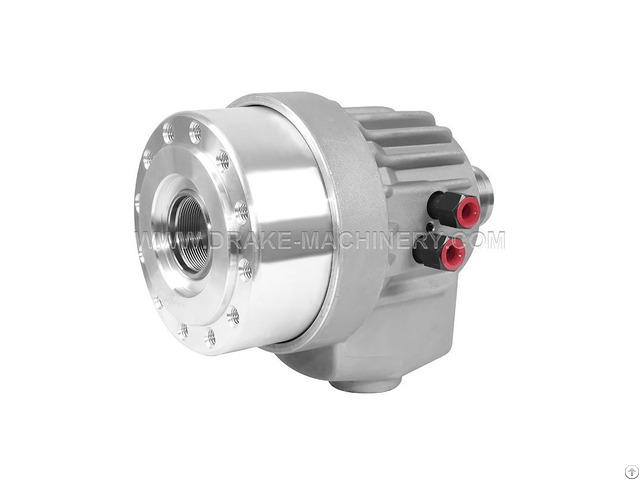

TH Through Hole Rotating Hydraulic Cylinder Hydraulic Chuck Cylinder For Sale Rotary Cylinder Manufacturers Product Feature:

Lightweight, large through-hole rotary cylinders with through-holes for machining long-shaft parts.

Built-in check valve self-locking mechanism can prevent pipe damage, loss of pressure source, and ensure stable clamping of workpieces.

Safe and reliable.

High-speed, high-life, internal components are imported.

Can be customized according to customer requirements.

Performance parameters Model/Spec.

Piston area (cm²) Stroke

(mm) Hightest turnover number

min-1(rpm) Maximum working pressure

MPa(kgf/cm²) GD2

(kg.

m²) Total volume of

oil drainage Weight

(kg) Press side Pull side TH428 53.2 50.5 10 8000 4.0(40) 0.02 3 5.8 TH536 69.8 67.5 15 8000 4.0(40) 0.05 3 8.5 TH646 97.3 87.9 15 7000 4.0(40) 0.09 3 13.5 TH852 146.8 136.6 20 6200 4.0(40) 0.2 3.9 16.4 TH1075 196.2 182 25 4700 4.0(40) 0.4 4.2 25.8 TH1291 250.6 234.1 30 3800 4.0(40) 0.61 4.5 33 TH1512 345.4 334.6 30 2800 4.0(40) 1.5 7 50 Size parameters Model/Spec.

A

I.

D B C D E

(h7) F G1

max.

G1

min.

G2

max.

G2

min.

H J K L M1 M2 N1 N2

TH428 90 130 120 100 80 40 10 / 35 / 45 127.5 155 6-M8×15 M33×1.5 25 M34×1.5 26

TH536 105 150 135 115 100 50 15 / 40 / 47.5 125.5 170.5 6-M10×20 M42×1.5 25 M44×1.5 28

TH646 125 169 156 130 100 65 15 / 40 / 60 135.5 193.5 12-M10×20 M55×2 30 M52×1.5 32

TH852 150 198 188 170 130 70 20 0 45 25 66 145 198 12-M10×20 M60×2 30 M58×1.5 34

TH1075 175 225 213 190 160 95 25 / 50 / 62 166.5 231 12-M10×22 M85×2 35 M84×2 40

TH1291 205 255 240 215 180 110 30 / 55 / 64.5 180.5 250 12-M12×24 M100×2 35 M99×2 46

TH1512 250 315 305 275 230 140 30 / 55 / 68 193 273 12-M16×32 M130×2 45 M134×2 46 Model/Spec.

01

H8 02

H8 P Q1 Q2 Q3 R

(g7) S T U V W1 W2 X1 X2 Y1 Y2 TH428 30 28 101.5 11 24 PT1/4 32 45 65 88 4 72 105 / / 76 M4×7 TH536 38 36 119 11 24 PT1/4 42 55 80 98 4 80 110 / / 83 M5×10 TH646 50 46 127.5 12 30 PT3/8 50 70 95 116 4 98 125 62 M4×8 98 M5×10 TH852 55 52 135.5 12 32 PT3/8 56 75 100 128 4 100 130 67 M4×8 110 M6×10 TH1075 80 75 153.5 17 36 PT3/8 81 100 125 158 5 115 160 92 M4×8 145 M6×10 TH1291 95 91 165 21 34 PT1/2 96 120 142 180 5 136 185 110 M4×8 165 M6×10 TH1512 125 120 176.5 23 40 PT1/2 130 160 204 218 6 160 210 171 M6×10 215 M6×10 We are the manufacturer of China Rotary Cylinder, specializing in Rotating Hydraulic Cylinder and High-Speed Hydraulic Cylinder, with built-in check valve self-locking mechanism to prevent pipe damage, loss of pressure source, and ensure stable workpiece clamping.

Safe and reliable.

If you have any special requirements or parameter changes, please provide information and contact us.
