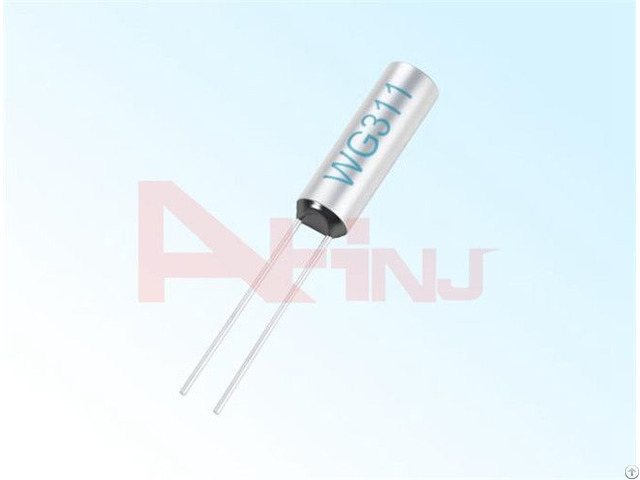

Signal-Type Wiegand Sensor WG311

Wiegand Sensor

Signal Type Wiegand Sensor Supplier

◆ Features

No need the power supply when it works.

Bipolar excitation working mode, the sensor outputs a pair of positive and negative electrical pulse signal when the magnetic field polarity changes for a circle.

Only when the external magnetic field polarity changed, and magnetic strength reaches the excitation threshold, the sensor will outputs a pulse signal, so the vibration won’t happen.

The operation is stable and reliable.

The signal amplitude has nothing to do with the magnetic field changing speed, and it can work at the speed near to zero.

The output signal can be remote transmitted by the signal lines, so it’s suitable for LAN management.

No mechanic contact, no spark, is a kind of intrinsic safety devices.

Wide operating temperature range, strong environmental adaptability.

Principle Outline

Zero power consumption sensor WG311 ( it also be called Wiegand Sensor) is a kind of new type magnetic component that is made based on Wiegand effect.

It can initiative generate energy, no need external power when it works.

It can give a sharp voltage pulse signal.

The sensor consists of a special processed alloy wire and induction coil which winds on the outside of wire, framework and pins etc.
