Polyester Woven Dryer Mesh - China

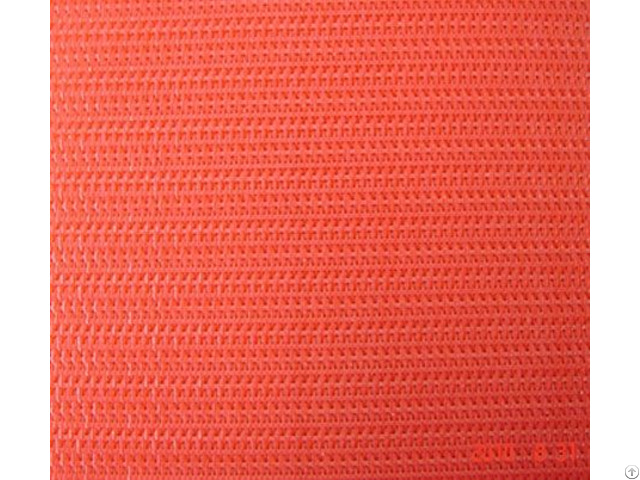

Polyester Woven Dryer Mesh

Polyester Dryer Woven Mesh Screen Fabric can be divided into 3-shed, 4-shed according to the weaving.

It can be divided insert, pin, pin ring and spiral ring join according to the interface type.

· 4106-2/16904 synthetic dryer wire mesh generally used for multi-cylinder paper machine, the first three groups of paper drying, high-grade paper.

· 4106-2/16904 synthetic dryer wire mesh generally used in the fore group of paper drying, high-grade papers are all available.

According to the category, polyester dryer fabrics can be divided into one and a half layer dryer fabric, double layer fabric, flat wire dryer fabric, flat double warp wire dryer fabric and special material dryer fabric.

3-shed, 4-shed one layer and a half are suitable for drying cultural paper, printing paper and packing paper etc.

Flat wire and flat double warp wire dryer fabric is suitable for the fore several heating box of the drying zone, quality papers can use the both.

Special material dryer fabric have the characteristics of high temperature resistance, abrasion resistance and aging resistance etc.

Weaving series&Types Model of Fabrics Wire Diameter(mm) Density(wire/cm) Strength(N/cm) Air permeability (m3/m2/h) Warp Weft Warp Weft Area of the surface 3-shed series 22503 0.5 0.5 24 Weft ≥2000 8000±500

4-shed series 20504 0.5 0.5 22 12 ≥1900 13000±500 22504 0.5 0.5 24 12 ≥2000 12000±500 24504 0.5 0.5 26 12 ≥2100 11000±500

Round wire fabric 4106 0.5 0.5 22 12.4 ≥2000 6800±500

Flat wire fabric 4106-1 0.38*0.58 0.5 16.66 15 ≥2000 5954±500 4106-2 0.38*0.58 0.4/0.6 18 14.66 ≥2000 4800±500 SL4106 0.5*0.75 0.6/0., 4 14.66 12.66 ≥2100 6000±500 SJ1860 0.25*1.05 0.6/0.9 9 7 ≥2200 2100±500
