Polyester Vacuum Filter Belt

Vacuum Filter Belt

Introduction:

Vacuum filter belt is mainly used for FGD in power plant, mine tailings disposal, metallurgical.

Chemical, coal chemical, food, pharmaceutical, environmental protection and other solid-liquid separation industries.

The belt have the characteristics of stable running, not easy to wrinkled, high filtration rate and it can peel off easily from the filter cake.

Mainly matching with vacuum rubber belt filter, horizontal vacuum belt filter, vacuum drum filter and vertical filter press.

Application:

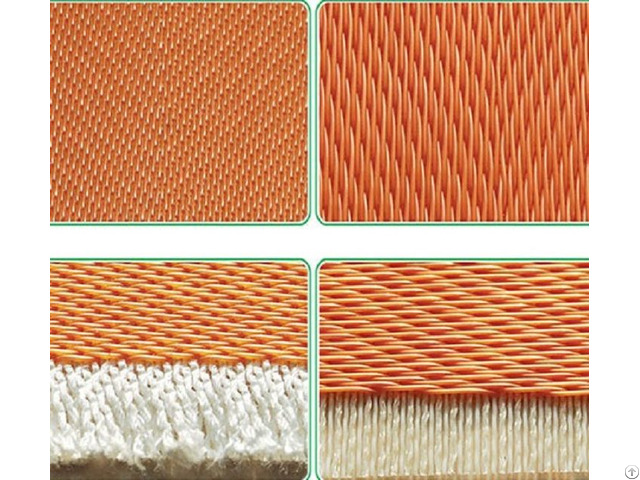

This polyester filter fabric is specially designed for desulfurization which is woven with polyester monofilaments and spun.

Desulfurization filter cloth is made with special first quality yarns in 100% polyester.

Every desulfurization filter belt is heat-set granting a high degree of stability and long running life.

The filter cloth is also widely used in Vacuum belt dehydrator, level of vacuum belt filter, vacuum belt type filter press, vertical automatic pressure filter, multiple disk filter, vacuum drum filter.

Model of Fabrics Wire Diameter(mm) Desity(wie/cm) Strength(N/cm) Air Permeability(m3/m2h) Warp Weft Warp Weft Area of the surface C28508F 0.5 0.5 30 20 ≥1450 2158±500

C28508M 0.5 0.5 28 21 ≥1390 710±500 Specification

Model Wire Diameter(mm) Density(wire/cm) Strength(N/cm) Air permeability

(127PA) Thickness

(mm) Weight

g/sqm warp weft Warp Weft Area of the surface 16903(white color) 0.7 0.9 16.2 5.5 ≥2600 5857.15 2.1 1570

16903(blue color) 0.7 0.9 16 5.4 ≥2600 5367.56 1.96 1570

26808 0.5 0.9 26.3 8 ≥2600 4564.76 1.5 1420

24908 0.5 0.9 24.4 7.1 ≥2600 6645.55 2.17 1450

15905 0.92 0.93 15.2 4.7 ≥2600 7981.14 2.9 1970

22903 0.5 0.9 22.4 5 ≥2600 9327.53 1.7 1140

151105 0.9 1.1 15.1 4.7 ≥2600 7279.14 3.05 2210

151105N 0.9 1.1 15.2 4.8 ≥2600 7055.94 2.98 2116

181005 0.66 1 18.4 6.4 ≥2600 4085.97 2.21 1743

061204(Pink) 1.2 1.2 7.4 4 ≥2600 9597.52 2.75 1600
